| Place of Origin: | China |
| Brand Name: | JVT |
| Certification: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT1255 |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Type Of Row: | Double Row | Pitch: | 1.25mm |
|---|---|---|---|
| Wire Applicable: | 28 - 32 # | Current: | 1A AC / DC |

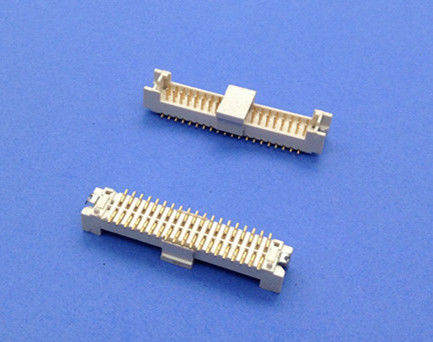

DF13 1.25mm pitch for pcb connector Wire to Board with Double Row,2-30poles
Specification Standardized:
|
Scale |
1.25mm |
|
Cables |
2 X 5 - 2 X 20 |
|
Applicable wire |
AWG#28 - 32 |
|
Rating Voltage |
150V AC/DC |
|
Rating Current |
1A AC/DC |
|
Voltage Withstand |
500V AC/minute |
|
Operating temperature |
-25°C to +85°C |
|
Insulation resistance |
500MΩ Min |
|
Contact resistance |
20MΩ Max. |
Datasheet:
Material Specification :
Terminal: Phosphor Bronze ,Tin plated
Housing: PA66,UL94V-0
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
