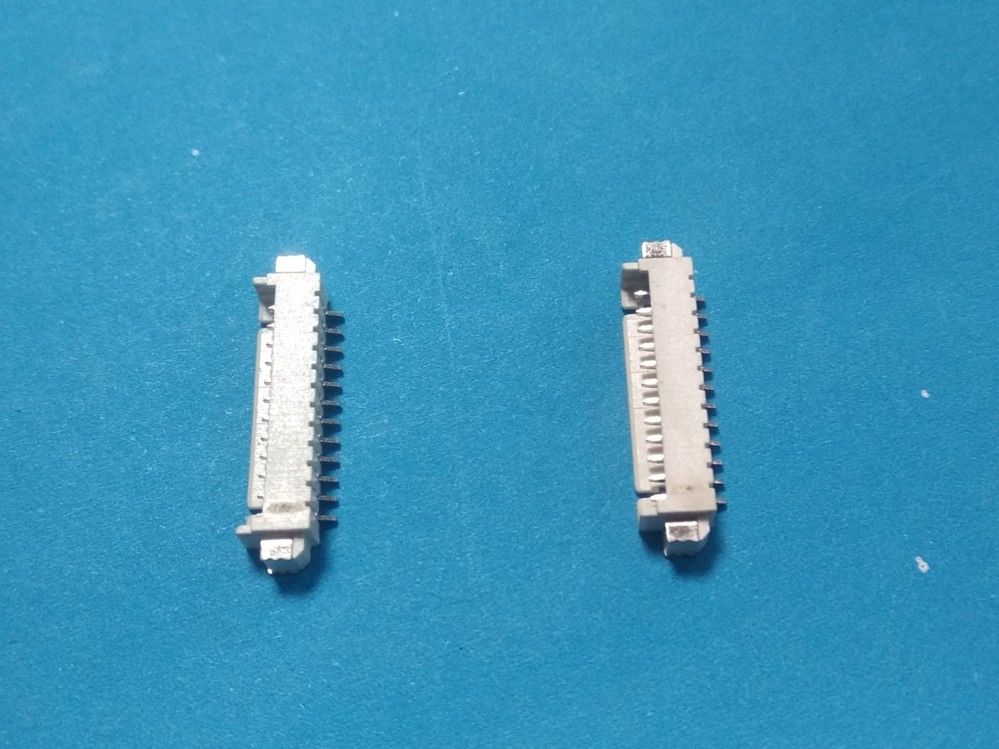

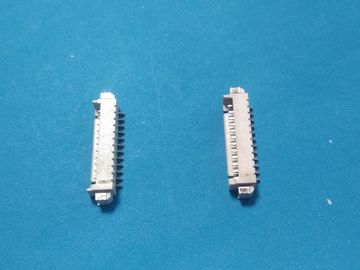

125V AC / DC PCB Wire to Board Connectors Pitch 1.25mm PIN 2-16

    • 125V AC / DC PCB Wire to Board Connectors Pitch 1.25mm PIN 2-16
    • 125V AC / DC PCB Wire to Board Connectors Pitch 1.25mm PIN 2-16
  • 125V AC / DC PCB Wire to Board Connectors Pitch 1.25mm PIN 2-16

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: UL ,RoHS ,REACH
    Model Number: JVT 1147

    Payment & Shipping Terms:

    Minimum Order Quantity: 2000
    Price: negotiation
    Packaging Details: Tape&Reel
    Delivery Time: 5-7days
    Payment Terms: T/T, Western Union
    Supply Ability: 500000pcs per day
    Contact Now
    Detailed Product Description
    Pitch: 1.25mm Poles: 2-16
    Color: Brown Material: LCP 66 UL94V-0
    Type: SMT Equivalent: Molex



    SMT Type, PCB Connectors Wire to Board, Pitch 1.25mm PIN 2-16 , Tin-plated

    JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive.

    All are offered with small moq's ,the majority being stocked items.





    Drawing:



    125V AC / DC PCB Wire to Board Connectors Pitch 1.25mm PIN 2-16







    Specification​:


    Temperature range -25°C - +85°C
    Contact Resistance 10mΩ
    Insulation Resistance 1000MΩ
    Poles 2-16
    Voltage Rating 125V AC/DC
    Current Rating 1A AC/DC
    Withstanding voltage 250V AC/minute

    Transaction details:
    Payment item:T/T,Western Union
    MOQ:2000PCS
    Sample:Free




    If we cooperate, you can have

    We were your factory in China
    Your client satisfied on the right schedule and quality
    Your client continued orders
    You can get good reputation from your market and obtain more orders
    Our professional service before and after sale
    Long-term support for the drawings and various materials samples





    125V AC / DC PCB Wire to Board Connectors Pitch 1.25mm PIN 2-16
