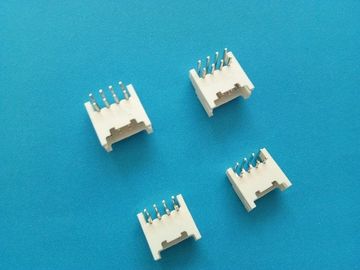

PHD 2 - 16 Cables 2.0 Mm Pitch Connector , PCB Wire To Board Connectors

    • PHD 2 - 16 Cables 2.0 Mm Pitch Connector , PCB Wire To Board Connectors
    • PHD 2 - 16 Cables 2.0 Mm Pitch Connector , PCB Wire To Board Connectors
  • PHD 2 - 16 Cables 2.0 Mm Pitch Connector , PCB Wire To Board Connectors

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT2007

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Applicable Wire: 22 - 28 3AWG Pitch: 2.0mm
    Poles: 2 -16 Type: PHD

    PHD Wire to Board Connector 2.0mm Scale 2-16 Cables -25°C - +85°C Operating Temperature



    Material Specification :



    Terminal: Phosphor Bronze ,Tin plated



    Housing: PBT UL 94V-0





    PHD 2.0mm Pitch for Wire to Board Connector Application Signal 3A AC / DC





    Drawings:



    PHD 2 - 16 Cables 2.0 Mm Pitch Connector , PCB Wire To Board Connectors



    PHD 2 - 16 Cables 2.0 Mm Pitch Connector , PCB Wire To Board Connectors



    PHD 2 - 16 Cables 2.0 Mm Pitch Connector , PCB Wire To Board Connectors



    PHD 2 - 16 Cables 2.0 Mm Pitch Connector , PCB Wire To Board Connectors



    Standardized Specification:



    Scale

    2.0mm

    Cables

    2-16

    Applicable wire

    AWG#24-28

    Rating Voltage

    125V AC/DC

    Rating Current

    2A AC/DC

    Withstand voltage

    500V AC/minute

    Operating temperature

    -25°C to +85°C

    Insulation resistance

    1000MΩ Min

    Contact resistance

    20MΩ Max.
