| Place of Origin: | China |
| Brand Name: | JVT |
| Certification: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT1121HNO-02RE |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Pitch: | 3.96mm | Wire Applicable: | AWG 28 - 32# |
|---|---|---|---|
| Brand: | JST | Voltage Ratingt: | 50V |
| Application: | PCB | Gender: | Female |

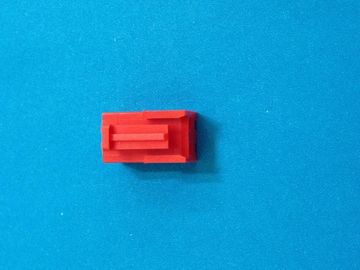

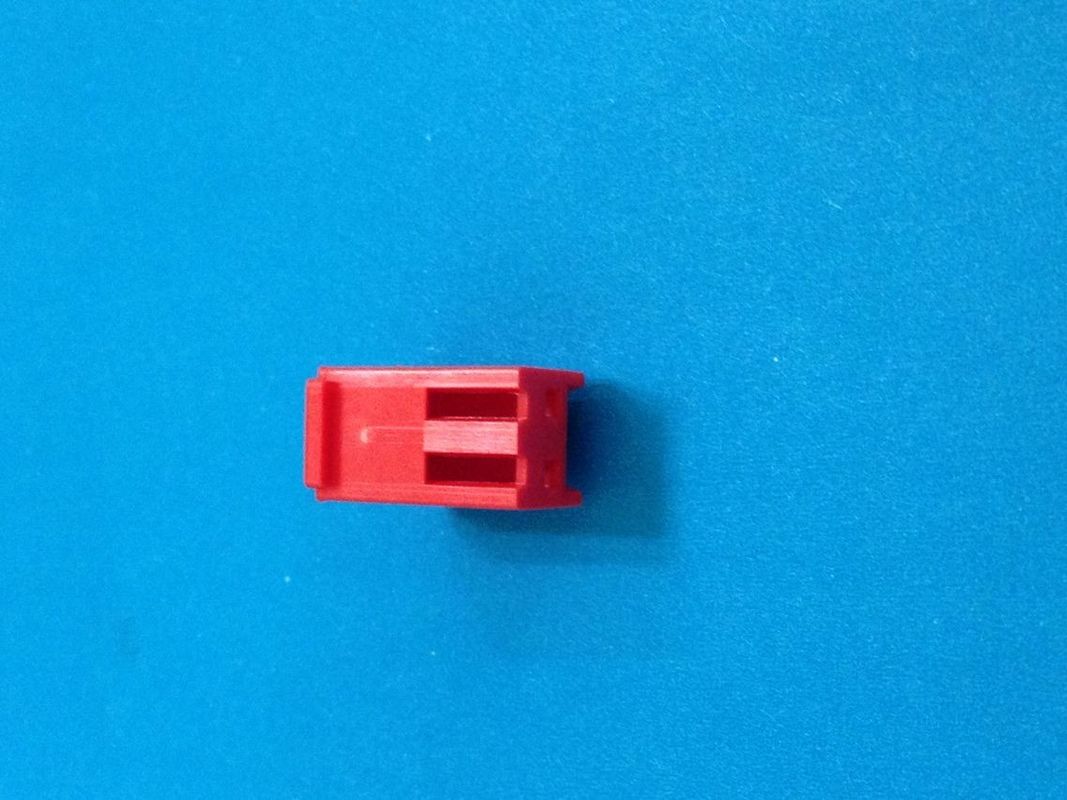

1.3.96mm JST VH connector housing Wire to Board pcb Connector 2pin Red color,Nylon66 UL94V-0
2. JVT supply JST cross part VHR-2 ,2pin housing connector ,PA66 UL94V-0 ,wire to board connector type
Datasheet (PDF) & Other Documents Download center:
Specification Standardized:
| contact space |
3.96mm |
|
poles |
2-16 |
|
Applicable wire |
AWG#28 - 32 |
|
Rating Voltage |
1000V AC/DC |
|
Rating Current |
1A AC/DC |
|
Voltage Withstand |
50V AC/minute |
|
Operating temperature |
-25°C to +85°C |
|
Insulation resistance |
500MΩ Min |
|
Contact resistance |
20MΩ Max. |
Material Specification :
|
Terminal: |
Phosphor Bronze ,Gold plated |
|
Housing: |
Nylon66 UL94V-0 |
|
Wafer: |
Nylon 6T UL94V-0 |
|
PIN: |
Brass,Gold plated |
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
Service
Country of Origin
Experienced Staff
Guarantee/Warranty
International Approvals
Price
Prompt Delivery
Quality Approvals
JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .
All are offered with small moq's ,the majority being stocked items .
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
