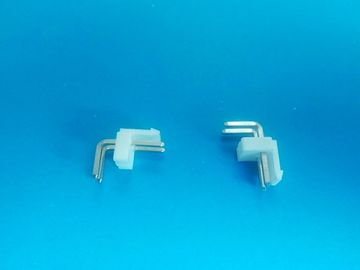

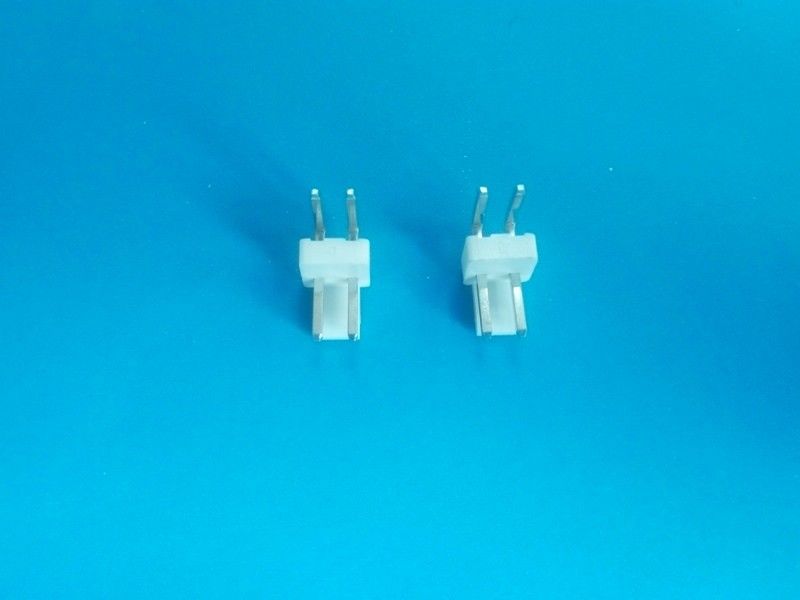

Pitch 2.0mm , 2-16PIN , PCB Connectors Wire to Board , Dip Type Tin-plated

    • Pitch 2.0mm , 2-16PIN , PCB Connectors Wire to Board , Dip Type Tin-plated
    • Pitch 2.0mm , 2-16PIN , PCB Connectors Wire to Board , Dip Type Tin-plated
  • Pitch 2.0mm , 2-16PIN , PCB Connectors Wire to Board , Dip Type Tin-plated

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: UL ,RoHS ,REACH
    Model Number: JVT 1120

    Payment & Shipping Terms:

    Minimum Order Quantity: 2000
    Price: Negotiation
    Packaging Details: Tape&Reel
    Delivery Time: 6-9working days
    Payment Terms: T/T, Western Union
    Supply Ability: 500000pcs per day
    Contact Now
    Detailed Product Description
    Category: PCB Connectors Wire To Board Poles: 2-16
    Pitch: 2.0mm Color: White
    Tape: DIP Finish: Tin-plated



    Pitch 2.0mm , 2-16PIN , PCB Connectors Wire to Board , Tin-plated


    JVT offer a complete range of board to board and wire to board connectors including :pin,mini jumpers, female header,PCB Multipole and housing a wide range of applications including:industrial,Medical and automotive.

    All are offered with small moq's,the majority being stocked items.





    Specification ​:



    Category PCB Connectors Wire to Board
    Material  Nylon66 UL94V-0
    Pitch 2.0mm
    Poles 2-16
    Color White
    Voltage rating 250V AC/DC
    Current rating 10A AC/DC
    Withstand voltage 800V AC/minute
    Working temperature -25°C to +85°C
    Contact resistance 10MΩ Max
    Insulation resistance 1000MΩ Min
    Samples free
    package 1000pcs/bag





    Drawing :



    Pitch 2.0mm , 2-16PIN , PCB Connectors Wire to Board , Dip Type Tin-plated



    Pitch 2.0mm , 2-16PIN , PCB Connectors Wire to Board , Dip Type Tin-plated





    Payment Details :



    Payment Terms:T/T or Western Union



    Minimum Order:2000 Pieces





    Service:



    10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



    prefessional and patient pre-service & after-service



    professsional sales team & engineering team & techinology team



    puntual delivery time and complete packaging process



    preferable price and best quality





    Equipment :



    Pitch 2.0mm , 2-16PIN , PCB Connectors Wire to Board , Dip Type Tin-plated



    Pitch 2.0mm , 2-16PIN , PCB Connectors Wire to Board , Dip Type Tin-plated
