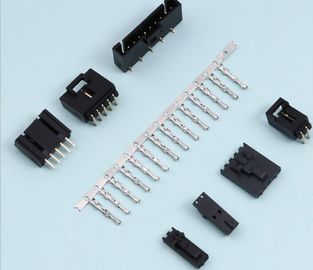

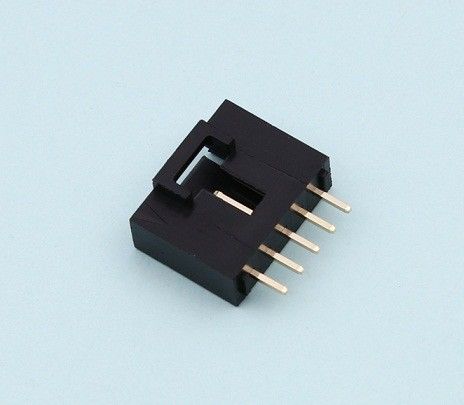

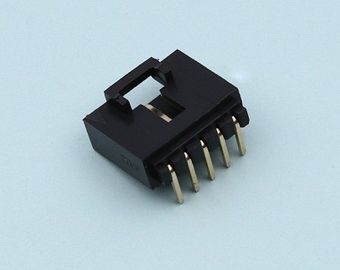

JVT CD-ROM P2.54mm PCB Connectors Wire to Board gold plated with secure lock

    • JVT CD-ROM P2.54mm PCB Connectors Wire to Board gold plated with secure lock
    • JVT CD-ROM P2.54mm PCB Connectors Wire to Board gold plated with secure lock
    • JVT CD-ROM P2.54mm PCB Connectors Wire to Board gold plated with secure lock
  • JVT CD-ROM P2.54mm PCB Connectors Wire to Board gold plated with secure lock

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001:2008/SGS/UL/ROHS/Reach
    Model Number: JVT1142

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per week
    Contact Now
    Detailed Product Description
    Equivalent: Molex: CD-ROM Pitch: 2.54mm
    Plating: Gold-plated Color: Black/Green/White
    Circuits: 2-20 Material: PBT/PA66

    Molex CD-ROM 2.54mm Pitch Wire to Board Connector , PBT UL 94V - 0 PCB Cable Connectors



    Standardized Specification:



    Pitch: 2.54mm

    Poles: 2-20

    Voltage rating: 250V AC/DC

    Current rating: 2.5A AC/DC

    Withstand voltage: 1500V AC/minute

    Working temperature: -25°C to +85°C

    Insulation resistance: 1000MΩ Min

    Contact resistance: 20MΩ Max



    Specification on Material:



    Terminal:

    Phosphor Bronze ,Tin plated

    Housing:

    PBT UL 94V-0

    Wafer:

    PA66 UL94V-0

    PIN:

    Brass ,Gold plated





     Pitch for 2.54mm Wire to Board Connector Equivalent with Dupont



    Drawings:



    JVT CD-ROM P2.54mm PCB Connectors Wire to Board gold plated with secure lock



    JVT CD-ROM P2.54mm PCB Connectors Wire to Board gold plated with secure lock





    JVT CD-ROM P2.54mm PCB Connectors Wire to Board gold plated with secure lock



    JVT CD-ROM P2.54mm PCB Connectors Wire to Board gold plated with secure lock
