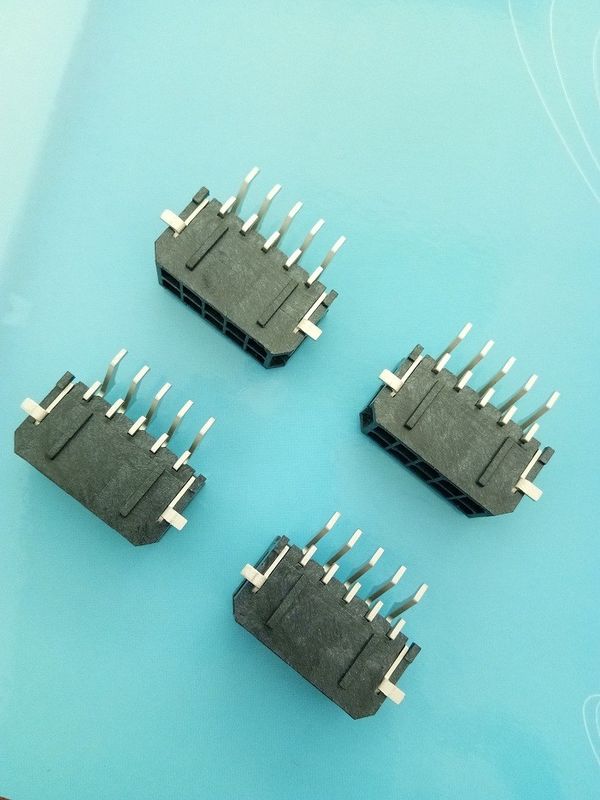

3.0mm Pitch Automotive Connectors Micro Fit Vertical Type SMT Wafer Connector

    • 3.0mm Pitch Automotive Connectors Micro Fit Vertical Type SMT Wafer Connector
    • 3.0mm Pitch Automotive Connectors Micro Fit Vertical Type SMT Wafer Connector
  • 3.0mm Pitch Automotive Connectors Micro Fit Vertical Type SMT Wafer Connector

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT3026WLP-2XXXXR-S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiation
    Packaging Details: Reel packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per day
    Contact Now
    Detailed Product Description
    Category: Wire To Board Crimp Style Connectors Cross Part: Molex 3.0mm Micro-Fit
    Type: SMT Vertical Type Pitch: 3.0mm
    Color: Black Poles: 2*1-2*12

    Equivalent of Molex 3.0mm Micro-Fit, Vertical Type, SMT Wafer Connector, Automotive Connector



    Friendly Link:

    Cross Part number list.pdf

    2016 JVT catalogue.pdf

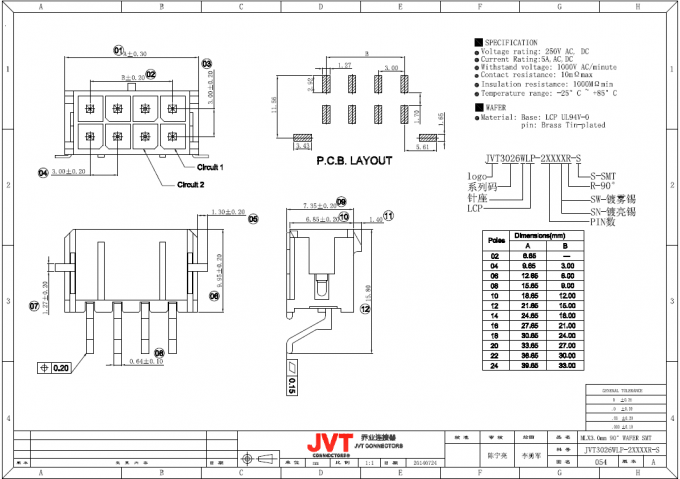

    Technical Datasheet:



    3.0mm Pitch Automotive Connectors Micro Fit Vertical Type SMT Wafer Connector







    Standardized Specification:



    Pitch

    3.0mm

    No.of contact

    2*1-2*12

    Equivalent

    Molex Micro-Fit

    Rating Voltage

    250V AC/DC

    Rating Current

    5A  AC/DC

    Voltage Withstand

    1500V AC/minute

    Operating temperature

    -25°C to +105°C

    Insulation resistance

    1000MΩ Min

    Contact resistance

    10MΩ Max.





    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces



    Competitive Advantages:

    We are connectors manufacturer with over 15 years experience.


    1. Complete Product range.


    2. Products Certificate— ISO9001:2008,UL:E364171,CSA, TUV,SGS.


    3. Close to Shenzhen Port.


    4. Punctual & Short lead time.


    5. Good quality & Competitive Price.
