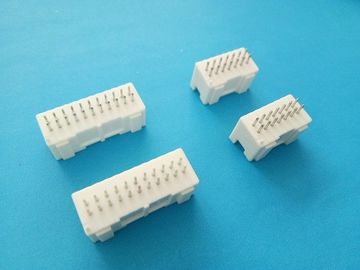

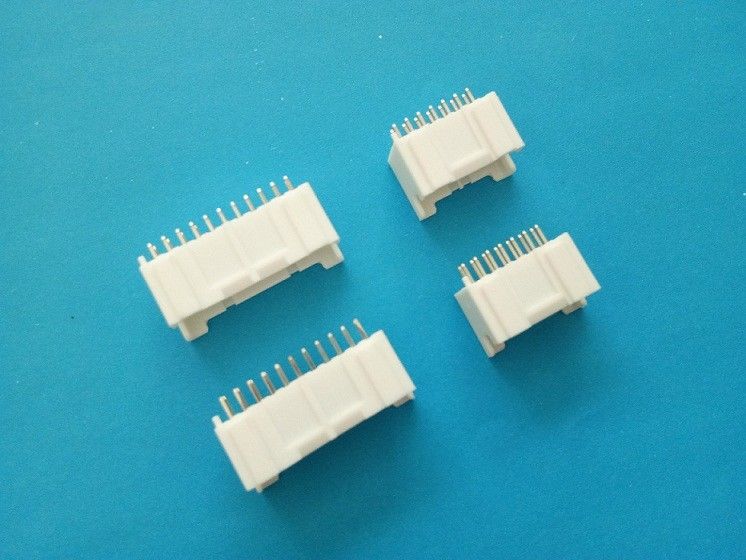

Double Row Wire To Board Connector 2mm Pitch , JVT PAD Crimp Style Connector

    • Double Row Wire To Board Connector 2mm Pitch , JVT PAD Crimp Style Connector
    • Double Row Wire To Board Connector 2mm Pitch , JVT PAD Crimp Style Connector
  • Double Row Wire To Board Connector 2mm Pitch , JVT PAD Crimp Style Connector

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT2038 Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 10000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union, L/C
    Supply Ability: 300000 per day
    Contact Now
    Detailed Product Description
    Category: Wire To Board Automotive Connector Pitch: 2.0mm
    Type: Crimp Style Connector Feature: Disconnectable Type
    Application: Automotive Devices Equivalent: JST-PAD

    JVT PAD 2.0mm Double Row Wire to Board Crimp style Connector with Secure Locking Devices



    Friendly Link:



    Cross Part number list.pdf



    PCB SMT header connector.pdf





    Standard Specification:



    Pitch

    2.0mm

    Pol4es

    2*2-2*16

    Applicable wire

    AWG#18-22

    Voltage rating

    250V AC/DC

    Current rating

    3A AC/DC

    Withstand voltage

    800V AC/minute

    Working temperature

    -25°C to +85°C

    Insulation resistance

    1000MΩ Min

    Contact resistance

    20MΩ Max





    Technical Drawing:



    Double Row Wire To Board Connector 2mm Pitch , JVT PAD Crimp Style Connector



    Double Row Wire To Board Connector 2mm Pitch , JVT PAD Crimp Style Connector



    Double Row Wire To Board Connector 2mm Pitch , JVT PAD Crimp Style Connector



    JVT Competitive Advantages:

    • Products with Good Performance
    • High-Efficiency Lead Time
    • Friendly Service
    • Experienced Staff
    • International Approvals
    • Competitive Price



    Business Value:



    Double Row Wire To Board Connector 2mm Pitch , JVT PAD Crimp Style Connector



    Main Export Markets:



    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • European Countries
