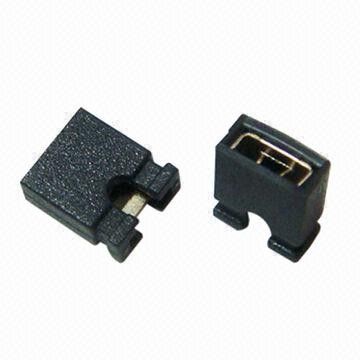

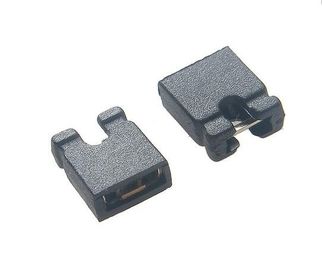

Tin Plated Brass Mini Jumper Connector , 2.54mm Pitch Open / Close Type Mini Pin Connector

    • Tin Plated Brass Mini Jumper Connector , 2.54mm Pitch Open / Close Type Mini Pin Connector
    • Tin Plated Brass Mini Jumper Connector , 2.54mm Pitch Open / Close Type Mini Pin Connector
  • Tin Plated Brass Mini Jumper Connector , 2.54mm Pitch Open / Close Type Mini Pin Connector

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT2541HPT-02BK

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Pitch: 2.54mm Type: Open Or Close
    Contact Plating: Tin Plated Color: Kinds Of
    Place Of Origin: Guangdong, China (Mainland) Type: Jumper
    Application: PCB

    Product name:



    Tin Plated Brass Mini Jumper Connector , 2.54mm Pitch Open / Close Type Mini Pin Connector



    2.54mm Mini Jumper Connector  ,2poles ,balck,PBT material ,10K/bag ​

    mini micro jumper for 2.54 mm pin header

    Datasheet (PDF) & Other Documents Download center:

    1.JVT2541HPT-02BK-B.pdf

    2.PCB SMT header connector.pdf

    3.Cross Part number list.pdf





    Specification Standardized:



    Pitch: 2.54 mm
    Contact: copper alloy
    Housing: thermoplastic (UL 94V-0)
    Contact resistance: 30m Ohms

    • Mini Jumper spec:
    • Contact material: phosphor bronze or brass
    • Standard: PBT + 30%GF
    • Contact plating: Au or Sn over 50μNi
    • Plastic height: 3.0, 3.5, 4.0, 4.5, 5.5, 6.0, 6.5, 8.5, 11.2 or 13.5mm
    • Current rating: 1.0, 1.5 or 3.0A
    • Minimum contact resistance: 20 or 30mΩ
    • Minimum insulation resistance: 500 or 1,000MΩ
    • Withstanding voltage: 100, 500 or 1,000V AC
    • Insulator material: polyester (UL94V-0)
    • Operation temperatures: -40 to +105°C
    • 2.54mm mini jumper,any color






    Tin Plated Brass Mini Jumper Connector , 2.54mm Pitch Open / Close Type Mini Pin Connector



    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces



    Primary Competitive Advantages:

    • Service
    • Country of Origin
    • Experienced Staff
    • Guarantee/Warranty
    • International Approvals
    • Price
    • Prompt Delivery
    • Quality Approvals





    Main Export Markets:

    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • North America







    Equipment and Service:



    10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



    prefessional and patient pre-service & after-service



    professsional sales team & engineering team & techinology team



    puntual delivery time and complete packaging process



    preferable price and best quality
