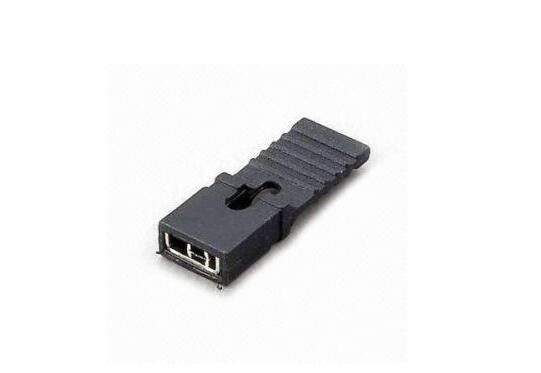

Pitch 2.54mm Long Type Mini Female Jumper Connector Height 13.5mm Gold Plated

Pitch 2.54mm Long Type Mini Female Jumper Connector Height 13.5mm Gold Plated

Pitch 2.54mm Long Type Mini Female Jumper Connector Height 13.5mm Gold Plated

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2541HPT-02BK-F

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 2.54mm Type: Open Or Close
Contact Plating: Tin Plated Color: Kinds Of
Place Of Origin: Guangdong, China (Mainland) Type: Jumper
Application: PCB

Product name:

2.54mm long type mini jumper connector ,heigh of 13.5mm ,gold plated ,Mates with any common pairs of 0.64 square pin



Tin Plated Brass Mini Jumper Connector , 2.54mm Pitch Open / Close Type Mini Pin Connector



2.54mm Mini Jumper Connector  ,2poles ,balck,PBT material ,10K/bag ​

mini micro jumper for 2.54 mm pin header

Datasheet (PDF) & Other Documents Download center:

1.JVT2541HPT-02BK-B.pdf

2.PCB SMT header connector.pdf

3.Cross Part number list.pdf





Specification Standardized:



Pitch: 2.54 mm
Contact: copper alloy
Housing: thermoplastic (UL 94V-0)
Contact resistance: 30m Ohms

  • Mini Jumper spec:
  • Contact material: phosphor bronze or brass
  • Standard: PBT + 30%GF
  • Contact plating: Au or Sn over 50μNi
  • Plastic height: 3.0, 3.5, 4.0, 4.5, 5.5, 6.0, 6.5, 8.5, 11.2 or 13.5mm
  • Current rating: 1.0, 1.5 or 3.0A
  • Minimum contact resistance: 20 or 30mΩ
  • Minimum insulation resistance: 500 or 1,000MΩ
  • Withstanding voltage: 100, 500 or 1,000V AC
  • Insulator material: polyester (UL94V-0)
  • Operation temperatures: -40 to +105°C
  • 2.54mm mini jumper,any color

1.Contact material :phosphor bronze with plating options

2.Insulator material :glass filled polyester UL 94V-0

3.Double tuning fork type contact guarantees high reliability





Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
