3.96mm Pitch PCB Board Automotive Connectors with Secure Lock Device in Natural Color

3.96mm Pitch PCB Board Automotive Connectors with Secure Lock Device in Natural Color

    • 3.96mm Pitch PCB Board Automotive Connectors with Secure Lock Device in Natural Color
    • 3.96mm Pitch PCB Board Automotive Connectors with Secure Lock Device in Natural Color
  • 3.96mm Pitch PCB Board Automotive Connectors with Secure Lock Device in Natural Color

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT1121-S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Equivalent: JST VH Series Pitch: 3.96mm
    Application: Power, Wire-to-Board, Wire-to-Wire Gender: Receptacle
    Housing Color: White Termination Method To PC Board: Through Hole -Solder

    Nylon 66 Tin Plated Wafer Automotive Connectors with Lock 6 Circuits Single Row

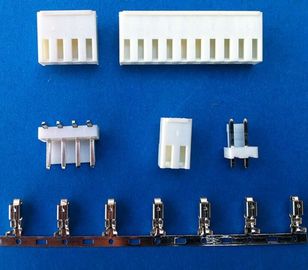

    3.96mm Housing /wafer /terminal  Automotive  connector with lock , single Row, 6Circuits, UL 94V-0, Natural



    Datasheet (PDF) download :

    1.JVT1121HN0-XX.pdf

    2.JVT1121TP-XXX.pdf

    3.JVT1120WN2-XXSNR-D.pdf

    4.JVT1120WN0-XXSNX-D.pdf



    Specifications :



    Part Number: JVT1121

    Category: wire to board connector ,power connector ,wire to wire connector

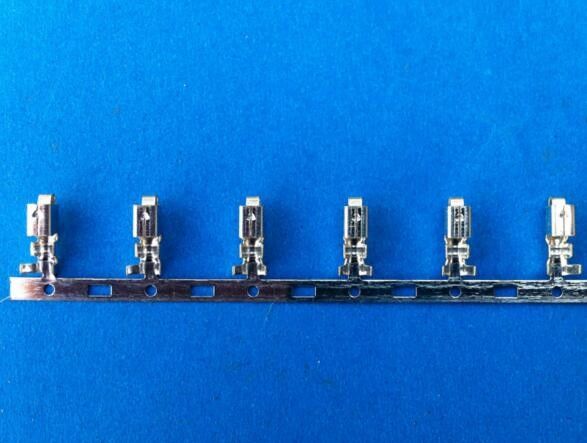

    Terminal: Brass , Tin-plated

    Housing: PA66,UL94V-0

    Wafer: Nylon 66 ,Tin plated



    Pitch: 3.96mm

    Poles:2-16

    Applicable wire: AWG#18-22

    Voltage rating: 250V AC/DC

    Current rating: 5A AC/DC

    Withstand voltage: 1500V AC/minute

    Working temperature: -40°C to +105°C

    Insulation resistance: 1000MΩ Min

    Contact resistance: 20MΩ Max.

    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces



    Primary Competitive Advantages:

    • Service
    • Country of Origin
    • Experienced Staff
    • Guarantee/Warranty
    • International Approvals
    • Price
    • Prompt Delivery
    • Quality Approvals





    Main Export Markets:

    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • North America







    Equipment and Service:



    10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



    prefessional and patient pre-service & after-service



    professsional sales team & engineering team & techinology team



    puntual delivery time and complete packaging process



    preferable price and best quality
