Black Wire Harness Cable Assembly Equivalent Of JST 0.8mm Pitch Crimping Connector

Black Wire Harness Cable Assembly Equivalent Of JST 0.8mm Pitch Crimping Connector

    • Black Wire Harness Cable Assembly Equivalent Of JST 0.8mm Pitch Crimping Connector
    • Black Wire Harness Cable Assembly Equivalent Of JST 0.8mm Pitch Crimping Connector
    • Black Wire Harness Cable Assembly Equivalent Of JST 0.8mm Pitch Crimping Connector

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: XC-JVT0800-XX

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per week
    Contact Now
    Detailed Product Description
    Pitch: 0.8mm No.of Rows: 2-22#
    Color: Black Equivalent: JST
    Highlight:

    custom cable assemblies

    ,

    electrical cable assembly

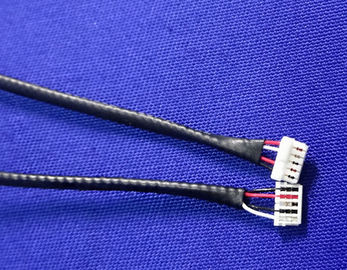

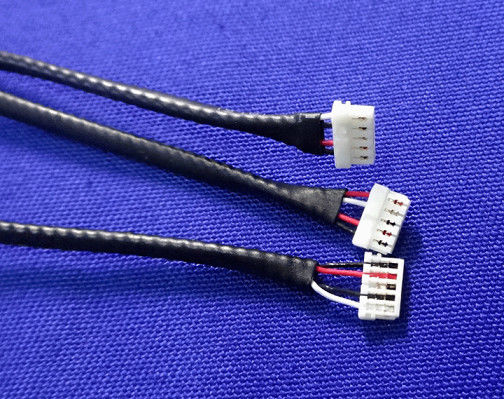

    Equivalent of JST 0.8mm Pitch Crimping Connector with crimping Black Color Wire







    Specification Standardized:



    Pitch

    0.8mm

    Poles

    2-22#

    Applicable wire

    		 32# AWG

    Rating Voltage

    30V AC/DC

    Rating Current

    0.5A AC/DC

    Withstand voltage

    200V AC/minute

    Operating temperature

    -25°C to +85°C

    Insulation resistance

    100MΩ Min

    Contact resistance

    30MΩ Max.





    Technical Datasheet:





    Black Wire Harness Cable Assembly Equivalent Of JST 0.8mm Pitch Crimping Connector



    Black Wire Harness Cable Assembly Equivalent Of JST 0.8mm Pitch Crimping Connector
