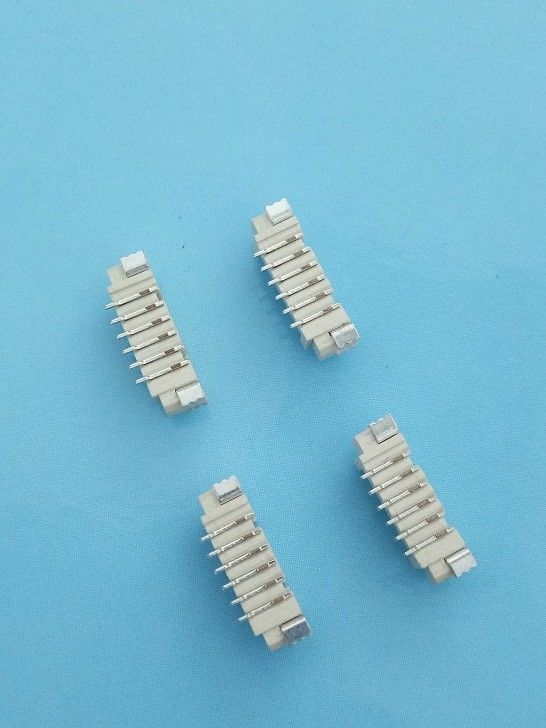

1.25mm Pitch SMT Vertical Type PCB Header Connector With PA66 Housing Beige Color

1.25mm Pitch SMT Vertical Type PCB Header Connector With PA66 Housing Beige Color

    • 1.25mm Pitch SMT Vertical Type PCB Header Connector With PA66 Housing Beige Color
    • 1.25mm Pitch SMT Vertical Type PCB Header Connector With PA66 Housing Beige Color
    • 1.25mm Pitch SMT Vertical Type PCB Header Connector With PA66 Housing Beige Color
  • 1.25mm Pitch SMT Vertical Type PCB Header Connector With PA66 Housing Beige Color

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT1147WLP-06SNBE-S

    Payment & Shipping Terms:

    Minimum Order Quantity: 10000 PCS
    Price: Negotiation
    Packaging Details: reel packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 300000 per week
    Contact Now
    Detailed Product Description
    Category: Wafer Connector Application: PCB Board Connector
    Type: SMT Vertical Type Number Of PIns: 2-16
    Equivalent: Molex 1.25mm Color: Beige

    Tin Plated 1.25mm Pitch PCB SMT Header Connector PA66 Housing Brass 2 Pin Connector



    Friendly Link:



    Cross Part number list.pdf





    Material Specification:



    Terminal: Phosphor Bronze or Brass ,Tin plated

    Housing: PA66,UL94V-0

    Wafer: Nylon 66 UL94V-0

    PIN: Brass ,Tin plated



    Standard Specification:



    Pitch

    1.25mm

    Contacts

     2-16

    Voltage rating

    125V AC/DC

    Current rating

    1A AC/DC

    Withstand voltage

    250V AC/minute

    Working temperature

    -25°C to +85°C

    Insulation resistance

    100MΩ Min

    Contact resistance

    20MΩ Max





    Drawing



    1.25mm Pitch SMT Vertical Type PCB Header Connector With PA66 Housing Beige Color





    Our advantage





    Favorable unit price



    Strict quality control



    Shortest lead time



    Professional team( from Tool esigning stamping,Injection molding assembling,Testing to packing)



    Accelerated equipments:10 automated injection molding
                                            20 automated pin - setting
                                           6 high precision stamping machines






    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces



    Primary Competitive Advantages:

    • Service
    • Country of Origin
    • Experienced Staff
    • Guarantee/Warranty
    • International Approvals
    • Price
    • Prompt Delivery
    • Quality Approvals





    Main Export Markets:

    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • North America





    Equipment and Service:



    10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



    prefessional and patient pre-service & after-service



    professsional sales team & engineering team & techinology team



    puntual delivery time and complete packaging process



    preferable price and best quality
