Place of Origin: | China |
Brand Name: | JVT |
Certification: | ISO9001/SGS/UL/ROHS/Reach |
Model Number: | JVT1147W46-08SNR-S |
Minimum Order Quantity: | 1000 PCS |
---|---|
Price: | Negotiation |
Packaging Details: | Reel Packing +outer carton |
Delivery Time: | 7-10 working days |
Payment Terms: | T/T or Western Union |
Supply Ability: | 300000 per month |
Category: | PCB Board Wafer | Application: | PCB Board Connector |
---|---|---|---|
Type: | SMT | Number Of PIns: | 2 |

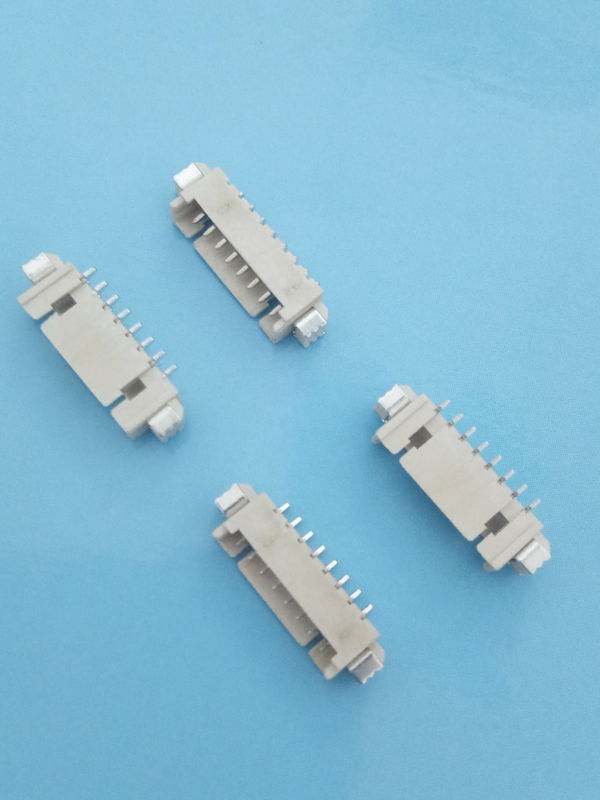

Tin Plated PCB SMT Right Angle Type Header Connector 1.25mm Pitch PA66 Housing
Material Specification:
Terminal: Phosphor Bronze or Brass ,Tin plated
Housing: PA66,UL94V-0
Wafer: Nylon 66 UL94V-0
PIN: Brass ,Tin plated
Standard Specification:
Pitch |
1.25mm |
Contacts |
2-16 |
Voltage rating |
125V AC/DC |
Current rating |
1A AC/DC |
Withstand voltage |
250V AC/minute |
Working temperature |
-25°C to +85°C |
Insulation resistance |
100MΩ Min |
Contact resistance |
20MΩ Max |
Technical Datasheet:
Our advantage
Favorable unit price
|
Strict quality control
|
Shortest lead time
|
Professional team( from Tool esigning stamping,Injection molding assembling,Testing to packing)
|
Accelerated equipments:6 automated injection molding
20 automated pin - setting
6 high precision stamping machines
|
Payment Details:
Payment Terms:T/T in advance
Minimum Order:1000 Pieces
|
|
