Place of Origin: | China |
Brand Name: | JVT |
Certification: | ISO9001/SGS/UL/ROHS/Reach |
Model Number: | JVT1224 |
Minimum Order Quantity: | 10000 PCS |
---|---|
Price: | Negotiation |
Packaging Details: | PE bag packing +outer carton |
Delivery Time: | 7-10 working days |
Payment Terms: | T/T or Western Union |
Supply Ability: | 300000 per month |
Pitch: | 1.2mm | Color: | Black |
---|---|---|---|
Rating Current: | 2A AC/DC | No.of Pins: | 8 |
Equivalent: | Molex 1.2mm | Plated Style: | Gold-plated |

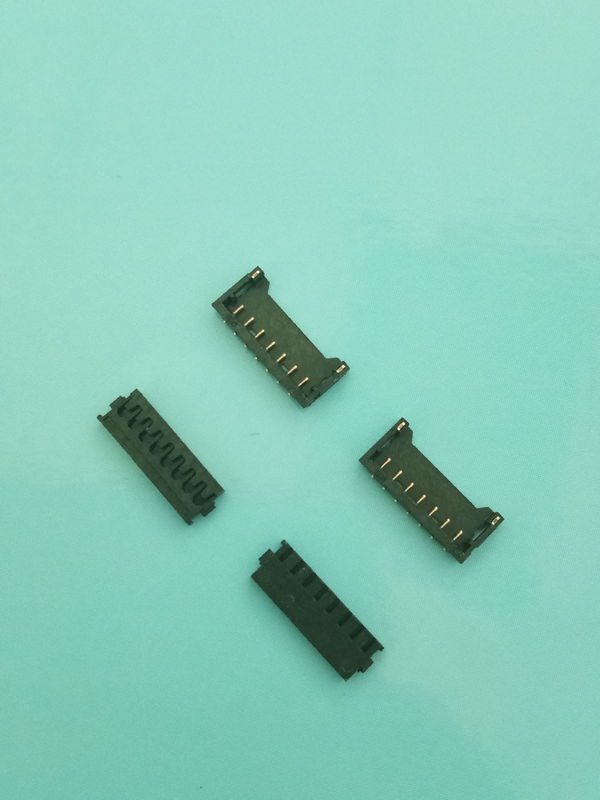

Single Row SMT Header Connector 1.2mm Pitch with Gold-Plated Contact Pins
Technical Datasheet:
Specification Standardized:
Pitch |
1.2mm
|
Poles |
8
|
Applicable wire |
28#
|
Rating Voltage |
50V AC/DC
|
Rating Current |
2A AC/DC
|
Withstand voltage |
500V AC/minute
|
Operating temperature |
-25°C to +85°C
|
Insulation resistance |
100MΩ Min
|
Contact resistance |
20MΩ Max.
|

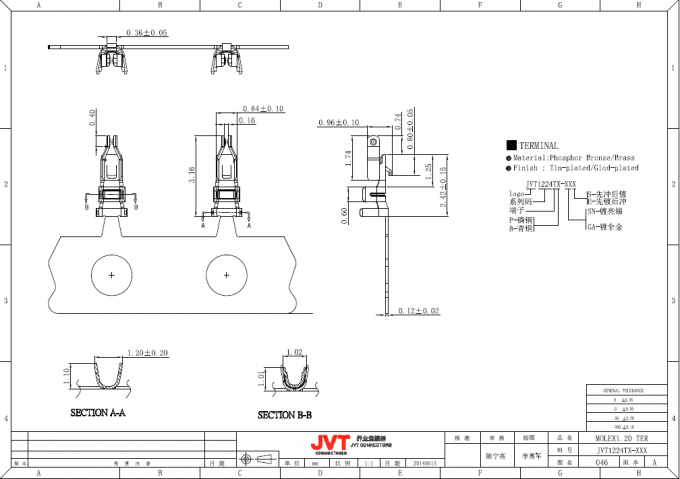

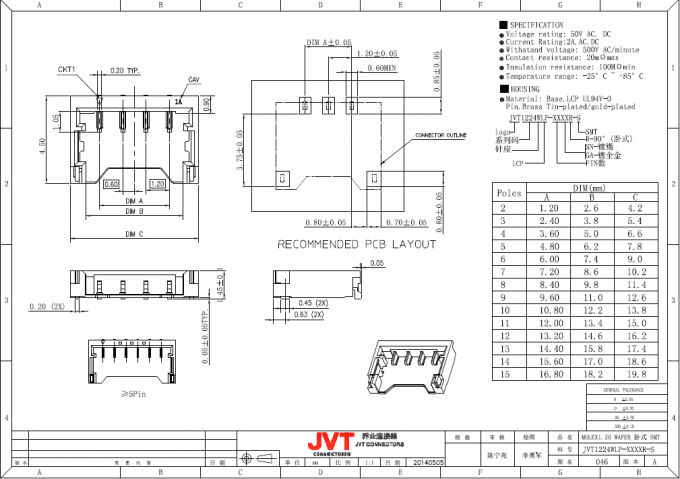

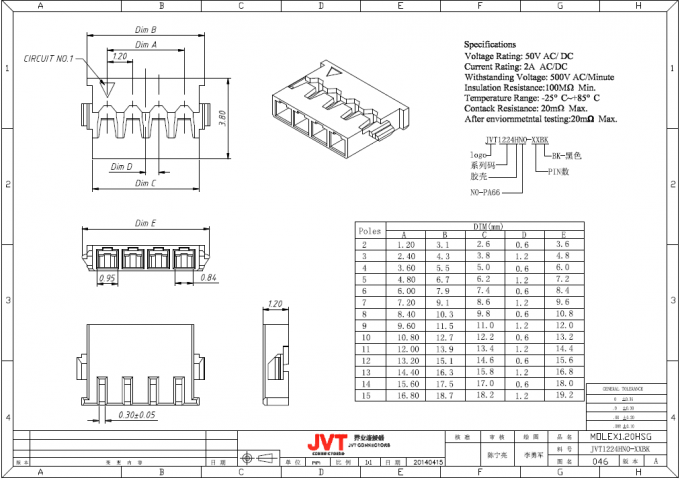

Drawing
