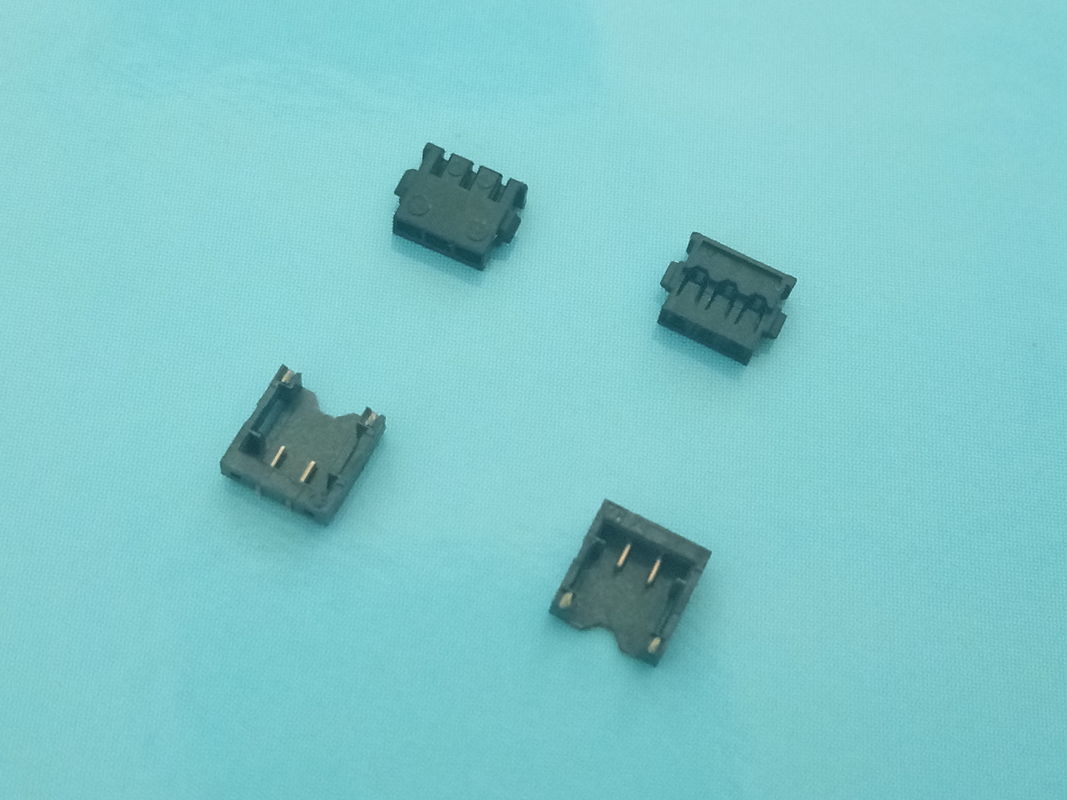

PCB SMT Header 1.2mm Pitch Connector 8 Pins Board To Board Connector 50V AC/DC

PCB SMT Header 1.2mm Pitch Connector 8 Pins Board To Board Connector 50V AC/DC

PCB SMT Header 1.2mm Pitch Connector 8 Pins Board To Board Connector 50V AC/DC

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT1224

Payment & Shipping Terms:

Minimum Order Quantity: 10000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 1.2mm Color: Black
Rating Current: 2A AC/DC No.of Pins: 8
Equivalent: Molex 1.2mm

1.2mm Pitch 8 Pole Black Color Gold-plated SMT Header Connector





Technical Datasheet:



PCB SMT header connector.pdf

Cross Part number list.pdf



Specification Standardized:





Pitch

1.2mm



Poles

8



Applicable wire

28#



Rating Voltage

50V AC/DC



Rating Current

2A AC/DC



Withstand voltage

500V AC/minute



Operating temperature

-25°C to +85°C



Insulation resistance

100MΩ Min



Contact resistance

20MΩ Max.







Drawing





PCB SMT Header 1.2mm Pitch Connector 8 Pins Board To Board Connector 50V AC/DC



PCB SMT Header 1.2mm Pitch Connector 8 Pins Board To Board Connector 50V AC/DC



PCB SMT Header 1.2mm Pitch Connector 8 Pins Board To Board Connector 50V AC/DC
