Straight Angle 2.0mm Pitch PCB Board Connector DIP PCB Mount Connectors

Straight Angle 2.0mm Pitch PCB Board Connector DIP PCB Mount Connectors

    • Straight Angle 2.0mm Pitch PCB Board Connector DIP PCB Mount Connectors
    • Straight Angle 2.0mm Pitch PCB Board Connector DIP PCB Mount Connectors
    • Straight Angle 2.0mm Pitch PCB Board Connector DIP PCB Mount Connectors
  • Straight Angle 2.0mm Pitch PCB Board Connector DIP PCB Mount Connectors

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT2038WLP-10SNR-D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiation
    Packaging Details: 1000pcs / Tray
    Delivery Time: 7-10 working days
    Payment Terms: T/T in advance
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Category: PCB Board Connector Angle: Straight
    Type: DIP Application: Automotive Devices
    Voltage Rating: 250V AC/DC Equivalent: JST PAD2.0mm

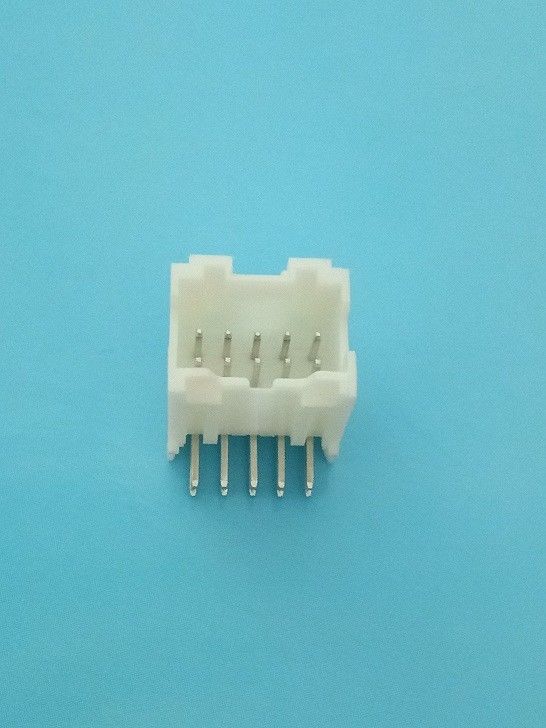

    2.0 Pitch PCB Board Connector in 5 Poles with White Color for Automotive Application





    Standard Specification:



    Pitch

    2.0mm

    Pol4es

    2*2-2*16

    Applicable wire

    AWG#18-22

    Voltage rating

    250V AC/DC

    Current rating

    3A AC/DC

    Withstand voltage

    800V AC/minute

    Working temperature

    -25°C to +85°C

    Insulation resistance

    1000MΩ Min

    Contact resistance

    20MΩ Max





    Technical Datasheet:







    Straight Angle 2.0mm Pitch PCB Board Connector DIP PCB Mount Connectors



    Straight Angle 2.0mm Pitch PCB Board Connector DIP PCB Mount Connectors





    Straight Angle 2.0mm Pitch PCB Board Connector DIP PCB Mount Connectors







    Payment Details:



    Payment Terms:T/T in advance



    Minimum Order:1000 Pieces





    Our advantage





    Favorable unit price



    Strict quality control



    Shortest lead time



    Professional team( from Tool esigning stamping,Injection molding assembling,Testing to packing)



    Accelerated equipments:10 automated injection molding
                                            20 automated pin - setting
                                           6 high precision stamping machines




    Main Export Markets:

    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • North America
