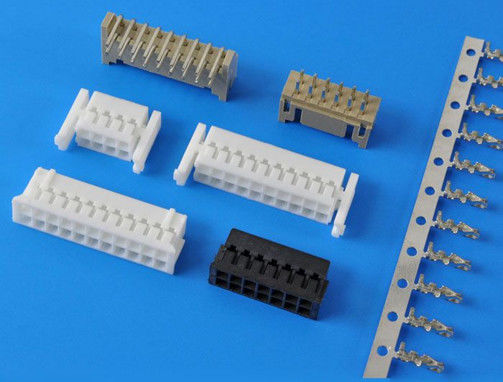

2.0 Pitch DIP Wafer Wire To Board Connector In 4 Contacts With Brass Tin - Plated Pin

2.0 Pitch DIP Wafer Wire To Board Connector In 4 Contacts With Brass Tin - Plated Pin

2.0 Pitch DIP Wafer Wire To Board Connector In 4 Contacts With Brass Tin - Plated Pin

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2008WXX-2X2SN-D

Payment & Shipping Terms:

Minimum Order Quantity: 5000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 2..0mm Color: Light Brown
Current Rating: 3A AC / DC Contacts: 2 *2- 2*25
Equivalent: JST-PHD 2.0mm Type: Vertical Type
Pin: Brass Tin-Plated Application: Wire To Board
Highlight:

wire to board power connector

,

circuit board pin connectors

2.0 Pitch DIP Wafer Wire to Board Connector in 4 Contacts with Brass Tin-Plated Pin



Cross Part number list.pdf

2016 JVT catalogue.pdf

FPC Catalogue.pdf

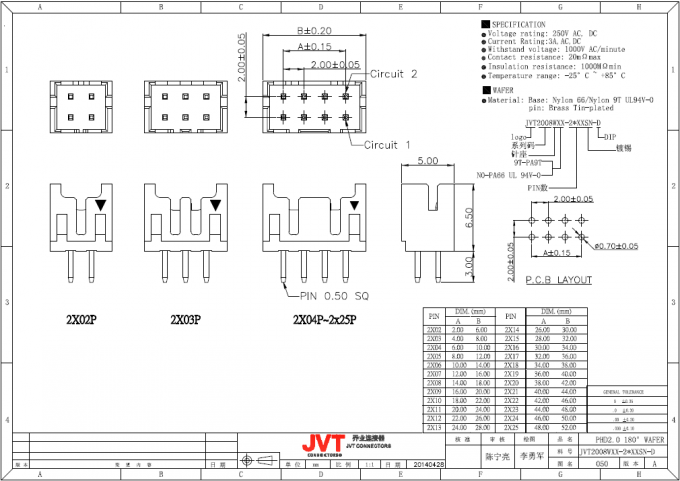

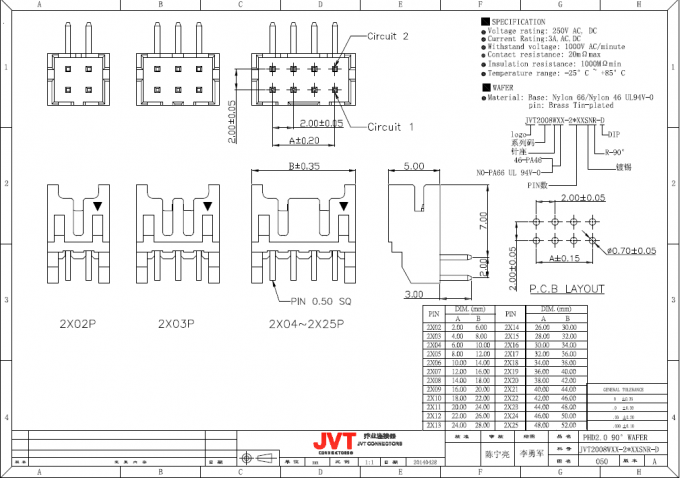

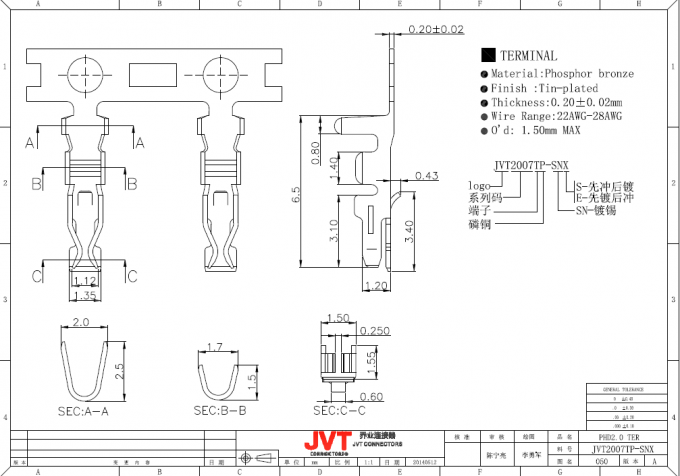

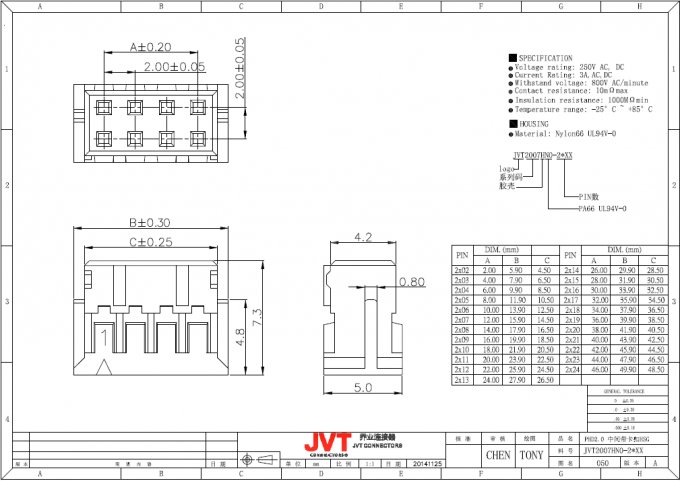

Technical Datasheet:



2.0 Pitch DIP Wafer Wire To Board Connector In 4 Contacts With Brass Tin - Plated Pin



2.0 Pitch DIP Wafer Wire To Board Connector In 4 Contacts With Brass Tin - Plated Pin



2.0 Pitch DIP Wafer Wire To Board Connector In 4 Contacts With Brass Tin - Plated Pin



2.0 Pitch DIP Wafer Wire To Board Connector In 4 Contacts With Brass Tin - Plated Pin





Competitive Advantages:





We are connectors manufacturer with over 15 years experience.



1. Complete Product range.



2. Products Certificate— ISO9001:2008,UL:E364171,CSA, TUV,SGS.



3. Close to Shenzhen Port.



4. Punctual & Short lead time.



5. Good quality & Competitive Price.





Application:





 Car audio

Household appliances

 Photocopier

GPS

 Fax machine

The set-top box

 Printer

Control panel





Payment Details:





Payment Terms:T/T in advance



Minimum Order:1000 Pieces



Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America









Tag:

wire to board power connector,

circuit board pin connectors

Contact Details
Dongguan JVT Connectors Co., Ltd

Contact Person: Diana Li

Tel: +8613712535997
