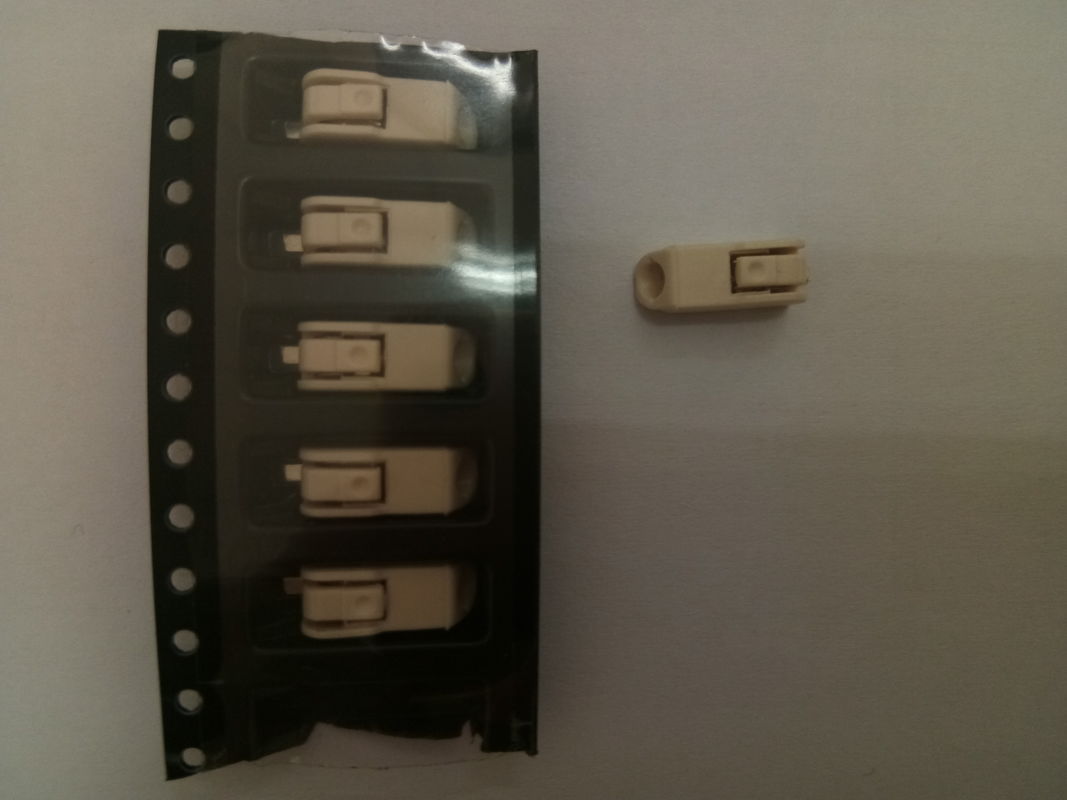

Equivalent Of Wago 1 Pole SMD LED Quick Connector 4.0mm Pitch PA46 UL94V-0 Housing

Equivalent Of Wago 1 Pole SMD LED Quick Connector 4.0mm Pitch PA46 UL94V-0 Housing

Equivalent Of Wago 1 Pole SMD LED Quick Connector 4.0mm Pitch PA46 UL94V-0 Housing

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT4002W46-01SN-S

Payment & Shipping Terms:

Minimum Order Quantity: 800/1000/1500 PCS/reel
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Pitch: 4.0mm No.of Contacts: 1
Rating Current: 9A, AC,DC Type: SMD Led Connector ,terminal Block
Packing: 800pcs/Reel Equivalent: Wago
Highlight:

terminal block connectors

,

SMD LED connectors

Equivalent of Wago, 3 Pole SMD LED Connector 4.0mm Pitch with PA46 UL94V-0 Housing



Cross Part number list.pdf

2016 JVT catalogue.pdf





Specification Standardized:





Pitch

4.0mm

Pins

3

Pin Material

 Phospher copper Gold Flash/Tin-plated

Rating Voltage

500V AC/DC

Rating Current

9A AC/DC

Withstand voltage

2000V AC/minute

Operating temperature

-25°C to +85°C

Insulation resistance

500MΩ Min

Contact resistance

20MΩ Max.

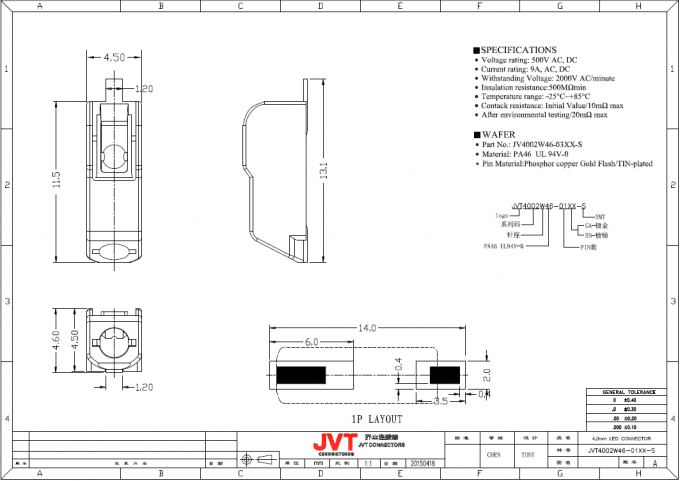

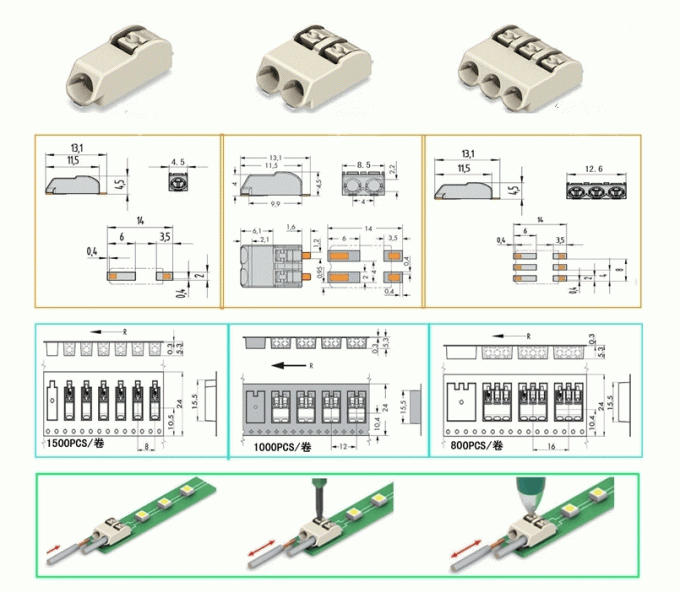

Technical Datasheet:



Equivalent Of Wago 1 Pole SMD LED Quick Connector 4.0mm Pitch PA46 UL94V-0 Housing





Equivalent Of Wago 1 Pole SMD LED Quick Connector 4.0mm Pitch PA46 UL94V-0 Housing



Equivalent Of Wago 1 Pole SMD LED Quick Connector 4.0mm Pitch PA46 UL94V-0 Housing



Equivalent Of Wago 1 Pole SMD LED Quick Connector 4.0mm Pitch PA46 UL94V-0 Housing



Payment Details:



Payment Terms:T/T or Western Union



MOQ:1000 Pieces/Reel



Competitive Advantages:

We are connectors manufacturer with over 15 years experience.


1. Complete Product range.


2. Products Certificate— ISO9001:2008,UL:E364171,CSA, TUV,SGS.


3. Close to Shenzhen Port.


4. Punctual & Short lead time.


5. Good quality & Competitive Price.



Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • America
  • Europe







Tag:

terminal block connectors,

SMD LED connectors
