Home ProductsPower Cable Connectors

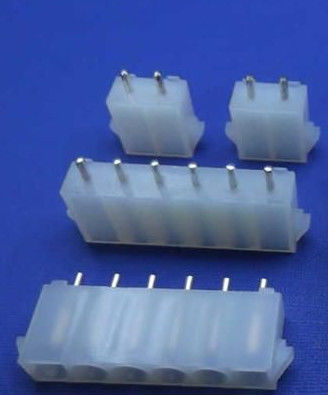

Equivalent of AMP 6.35mm Pitch Power Cable Connectors with Brass Contact Material

Equivalent of AMP 6.35mm Pitch Power Cable Connectors with Brass Contact Material

    • Equivalent of AMP 6.35mm Pitch Power Cable Connectors with Brass Contact Material
    • Equivalent of AMP 6.35mm Pitch Power Cable Connectors with Brass Contact Material
  • Equivalent of AMP 6.35mm Pitch Power Cable Connectors with Brass Contact Material

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT6350 SERIES

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Type: Wire To Wire Connector ,power Connector Equivalent: AMP 6.35mm
    Rating Current: 7A AC / DC Contact Material: Brass

    Equivalent of AMP 6.35mm Pitch Power Cable Connectors Single Row with Brass Contact Material



    Specification Standardized:



    Scale

    6.35mm

    Cables

    2-15

    Applicable wire

    AWG#22-28

    Rating Voltage

    300V AC/DC

    Rating Current

    10A AC/DC

    Voltage Withstand

    1500V AC/minute

    Operating temperature

    -25°C to +85°C

    Insulation resistance

    1000MΩ Min

    Contact resistance

    20MΩ Max.



    Equivalent of AMP 6.35mm Pitch Power Cable Connectors with Brass Contact Material

    Equivalent of AMP 6.35mm Pitch Power Cable Connectors with Brass Contact Material





    Equivalent of AMP 6.35mm Pitch Power Cable Connectors with Brass Contact Material



    Equivalent of AMP 6.35mm Pitch Power Cable Connectors with Brass Contact Material



    Equivalent of AMP 6.35mm Pitch Power Cable Connectors with Brass Contact Material





    Equivalent of AMP 6.35mm Pitch Power Cable Connectors with Brass Contact Material



    Material Specification :



    Terminal:

          Brass or Phosphor bronze,Tin/Gold Plated

    Housing:

    PA66,UL94V-2

    Wafer:

    Brass ,Nylon 66 UL94V-2

    PIN:

    Brass ,Tin plated





    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:5000 Pieces



    Competitive Advantages:



    We are connectors manufacturer with over 15 years experience.



    1. Complete Product range.



    2. Products Certificate— ISO9001:2008,UL:E364171,CSA, TUV,SGS.



    3. Close to Shenzhen Port.



    4. Punctual & Short lead time.



    5. Good quality & Competitive Price.



    Main Export Markets:



    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • North America
