Micro - Fit 3.0mm Wire to Wire Connector Pitch Receptacle Housing 6 Circuits

Micro - Fit 3.0mm Wire to Wire Connector Pitch Receptacle Housing 6 Circuits

Micro - Fit 3.0mm Wire to Wire Connector Pitch Receptacle Housing  6 Circuits

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT3025

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Equivalent: Molex Pitch: 3.0mm
Application: Power, Wire-to-Board, Wire-to-Wire Gender: Receptacle

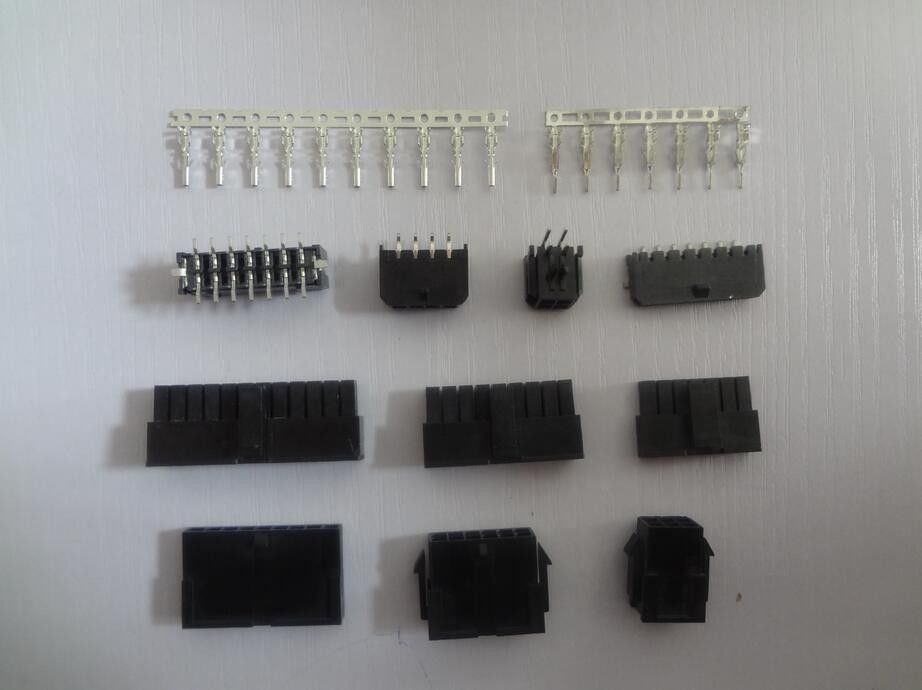

Micro-Fit 3.0mm Pitch Receptacle Housing Wire to Wire Connector Dual Row 6 Circuits,available in sinal row and dual row




Positive locking housings
Easy to operate thumb latch assures connectors are fully mated.
Positive locking prevents accidental unmating.

Available in UL94V-0, V-2, 265°C reflow, Glow-Wire and Low-Halogen compliant materials
Ideal for many applications to meet global material requirements



Specifications :



Part Number: JVT3025

Category: wire to board connector ,power connector ,wire to wire connector

Terminal: Brass , Tin-plated

Housing: PA66,UL94V-0

Wafer: Nylon 66 ,Tin plated



Pitch: 3.0mm

Poles:2-40

Applicable wire: AWG#18-22

Voltage rating: 250V AC/DC

Current rating: 5A AC/DC

Withstand voltage: 1500V AC/minute

Working temperature: -40°C to +105°C

Insulation resistance: 1000MΩ Min

Contact resistance: 20MΩ Max.





Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
