| Place of Origin: | China |
| Brand Name: | JVT |
| Certification: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT1271 |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Pitch: | 1.27mm | No.of Poles: | 14 |
|---|---|---|---|
| Type Of Row: | 2 | Color: | Black |
| Contact Type: | Socket | Connector Systm: | Board -to -board |
| Highlight: | pcb pin header,pin socket connector |
||

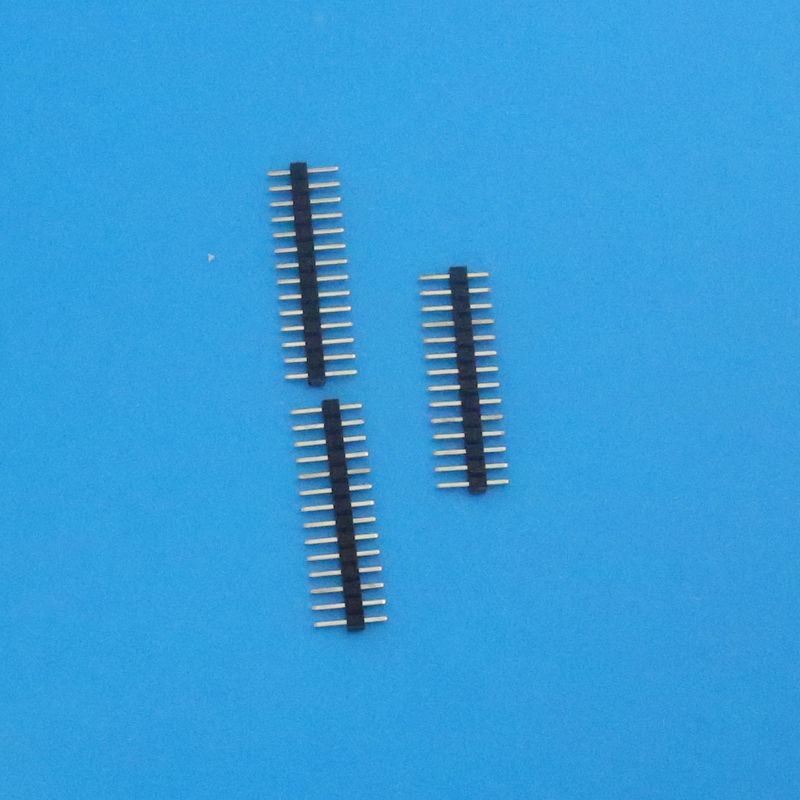

Straight Angle 14 Pin Header Connector with Gold / Tin Plated Surface Coating
Datasheet (PDF) & Other Documents Download center:
4.PCB SMT header connector.pdf
Specification Standardized:
Pitch 1.27mm for Pin Header Connector With 14 Pins in Straight Angle
| Pitch |
1.27mm |
|
Poles |
14 |
|
Applicable wire |
#28-32 |
|
Rating Voltage |
200V AC/DC |
|
Rating Current |
3A AC/DC |
|
Withstand voltage |
1000V AC/minute |
|
Operating temperature |
-40°C to +85°C |
|
Insulation resistance |
1000MΩ Min |
|
Contact resistance |
20MΩ Max. |
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
