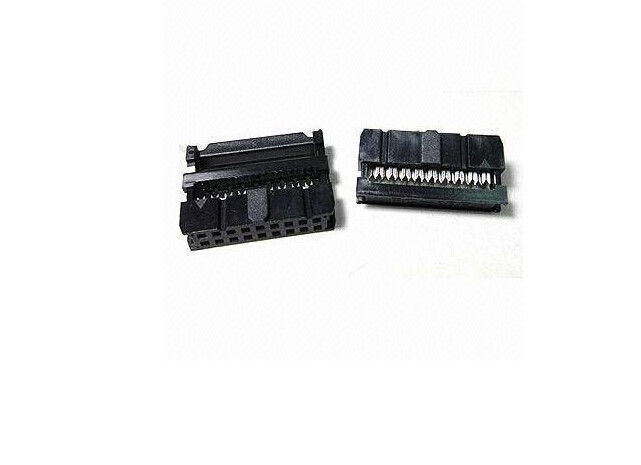

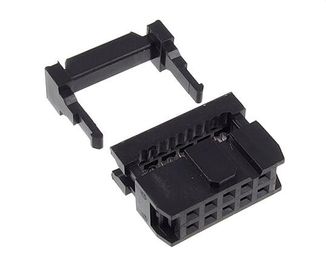

Daul Row 2.54mm Pitch IDC Socket Connector with Nylon 66 UL 94V-0 Housing

Daul Row 2.54mm Pitch IDC Socket Connector with Nylon 66 UL 94V-0 Housing

    • Daul Row 2.54mm Pitch IDC Socket Connector with Nylon 66 UL 94V-0 Housing
    • Daul Row 2.54mm Pitch IDC Socket Connector with Nylon 66 UL 94V-0 Housing
  • Daul Row 2.54mm Pitch IDC Socket Connector with Nylon 66 UL 94V-0 Housing

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT2543IXX-XX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Pitch: 2.54mm No.of Rows: 1
    No.of Contact: 2-30 Contact Material: Brass
    Contact Plating: Tin Plated Color: Black

    1.Daul Row 2.54mm Pitch IDC Socket Connector with Nylon 66 UL 94V-0 Housing





    2.2.54mm IDC connector ,daul row ,Nylon 66 UL 94V-0 ,30 poles



    3. Female 10pin IDC ,pitch 2.54mm for ribbon cable 1.27mm ,black color ,with fasterner ,gold flash contacts

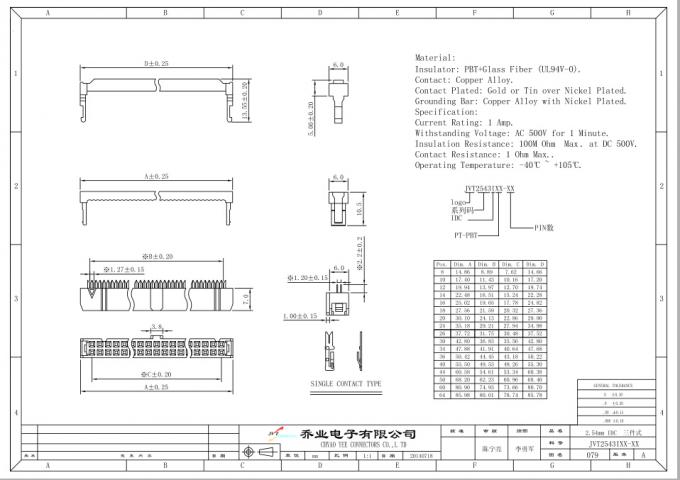

    Specification Standardized:



    Pitch

    2.54mm

    Poles

    2-20

    Applicable wire

    #28-32

    Rating Voltage

    1000V AC/DC

    Rating Current

    3A AC/DC

    Withstand voltage

    1000V AC/minute

    Operating temperature

    -40°C to +85°C

    Insulation resistance

    1000MΩ Min

    Contact resistance

    20MΩ Max.



    Material Specification :



    Housing: PA66,UL94V-0



    PIN: Brass,tin plated




    Daul Row 2.54mm Pitch IDC Socket Connector with Nylon 66 UL 94V-0 Housing



    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces



    Primary Competitive Advantages:

    • Service
    • Country of Origin
    • Experienced Staff
    • Guarantee/Warranty
    • International Approvals
    • Price
    • Prompt Delivery
    • Quality Approvals





    Equipment and Service:



    10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



    prefessional and patient pre-service & after-service



    professsional sales team & engineering team & techinology team



    puntual delivery time and complete packaging process



    preferable price and best quality
