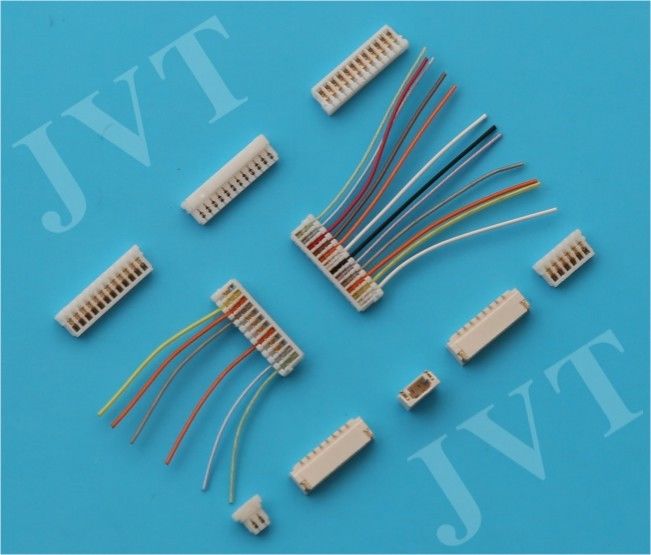

0.8mm Pitch Twin U Slot Insulation Displacement Connector with 3 Point Grip Construction

0.8mm Pitch Twin U Slot Insulation Displacement Connector with 3 Point Grip Construction

0.8mm pitch/disconnectable Insulation displacement IDC  connectors ,equivalent of JST 02SUR-32S

Datasheet (PDF) & Other Documents Download center:

1.JVT0800HXX-XX(SY) Model (1).pdf

The world's first 0.8mm pitch wire-to-board insulation displacement connector.

Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum gripping equipment.

• 3-point grip construction
• Super fine wires are applicable
• Shrouded header
• Twin  U-slot insulation displacement section

Specification Standardized:

Pitch: 0.8mm

Poles: 2-18

Applicable wire: AWG 32

Voltage rating: 1000V AC/DC

Current rating: 3A AC/DC

Withstand voltage: 1000V AC/minute

Working temperature: -40°C to +85°C

Insulation resistance: 5000MΩ Min

Contact resistance: 20MΩ Max.

Material Specification :

Housing :Nylon 66 UL94V-0

Wafer: Thermal Plastic,UL94V-0

PIN: Phosphor Bronze ,Gold plated

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

Main Export Markets:

Equipment and Service:

10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines

prefessional and patient pre-service & after-service

professsional sales team & engineering team & techinology team

puntual delivery time and complete packaging process

preferable price and best quality
