| Place of Origin: | China |
| Brand Name: | JVT |
| Certification: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT2041WNO |
| Minimum Order Quantity: | 2000PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | E bag packing +outer carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 300000 per month |
| Equivalent: | JST - PHB | Pitch: | 2.0mm |
|---|---|---|---|
| Type: | DIP Right Angle | Applicable Wire:: | AWG # 22-28 |

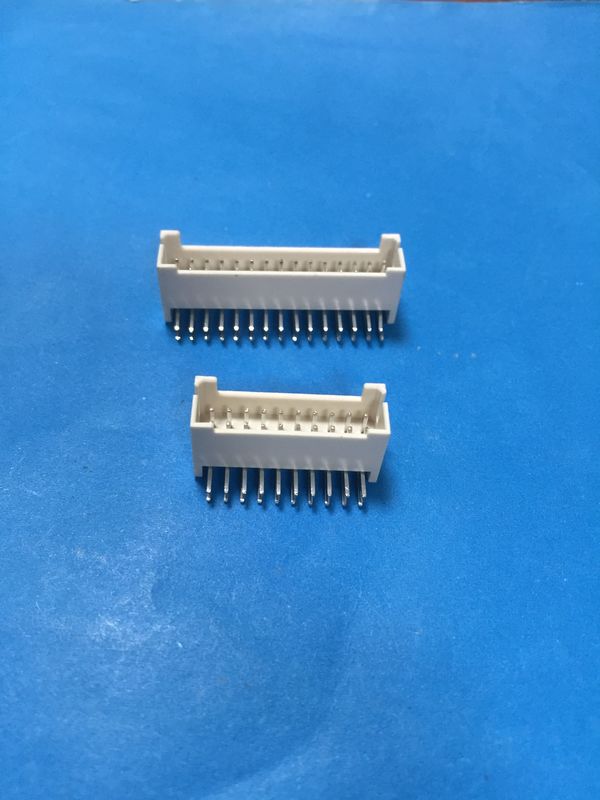

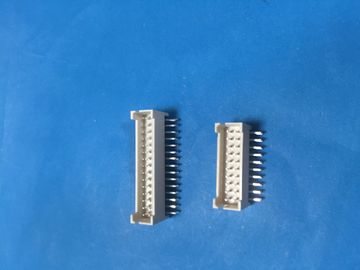

Dual Row PCB Board Connector , Right Angle Pcb Wire To Board Connectors
JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .
All are offered with small moq's ,the majority being stocked items .
Specification Standardized:
| Pitch |
2.0mm
|
| Poles |
16/26
|
| Color |
Beige Color
|
| Rating Voltage |
200V AC/DC
|
| Rating Current |
3A AC/DC
|
| Withstand voltage |
1000V AC/minute
|
| Operating temperature |
-40°C to +85°C
|
| Insulation resistance |
1000MΩ Min
|
| Contact resistance | 20MΩ Max. |
