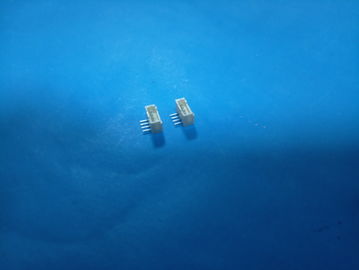

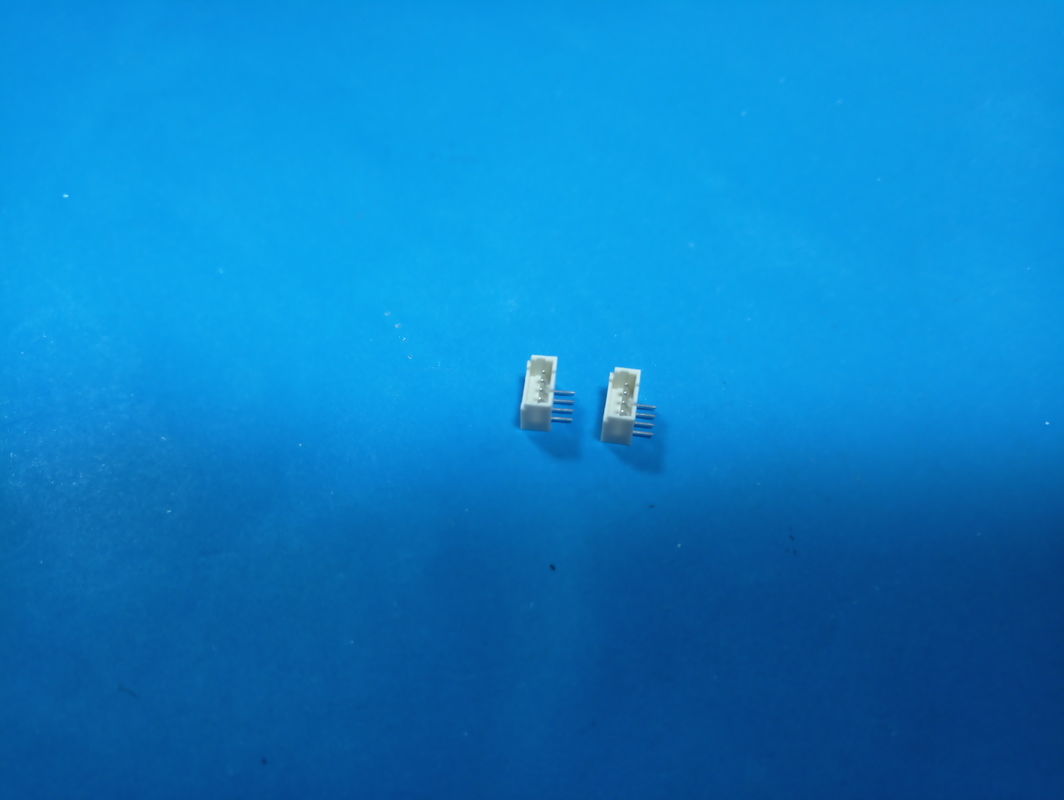

1.25mm Pitch PCB Board Connector / DIP Type Molex Right Angle Connector

1.25mm Pitch PCB Board Connector / DIP Type Molex Right Angle Connector

    • 1.25mm Pitch PCB Board Connector / DIP Type Molex Right Angle Connector
    • 1.25mm Pitch PCB Board Connector / DIP Type Molex Right Angle Connector
  • 1.25mm Pitch PCB Board Connector / DIP Type Molex Right Angle Connector

    Product Details:

    Place of Origin: CHINA
    Brand Name: JVT
    Certification: UL ,RoHS ,REACH
    Model Number: JVT1147

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000PCS
    Price: Negotiation
    Packaging Details: Tape&Reel
    Delivery Time: 5-7working days
    Payment Terms: T/T, Western Union
    Supply Ability: 500000pcs per day
    Contact Now
    Detailed Product Description
    Poles: 2-16 Pitch: 1.25mm
    Category: Right Angle Or Vertical Type: DIP
    Current Rating: 3A AC/ DC Voltage: 250V AC,DC



    1.25mm Pitch PCB Board Connector / DIP Type Molex Right Angle Connector



    JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

    All are offered with small moq's ,the majority being stocked items.





    Specification ​:


    Temperature range -25°C - +85°C
    Contact Resistance 20mΩ max
    Insulation Resistance 1000MΩmin
    Poles 2-16
    Voltage Rating 250V AC/DC
    Current Rating 3A AC/DC
    Withstanding voltage 1000V AC/minute



    Payment Details :



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces





    Equipment:





    PHD 2.0mm Pitch , Double Row 2-25 Pins, PCB Wire to Board Connectors , Right angle / Vertical



    PHD 2.0mm Pitch , Double Row 2-25 Pins, PCB Wire to Board Connectors , Right angle / Vertical





    Main Export Markets :

    ♦ Asia

    ♦ Australia

    ♦ Central/South America

    ♦ Mid East/Africa/North America
