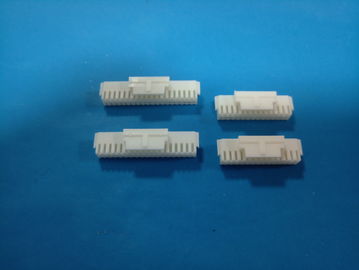

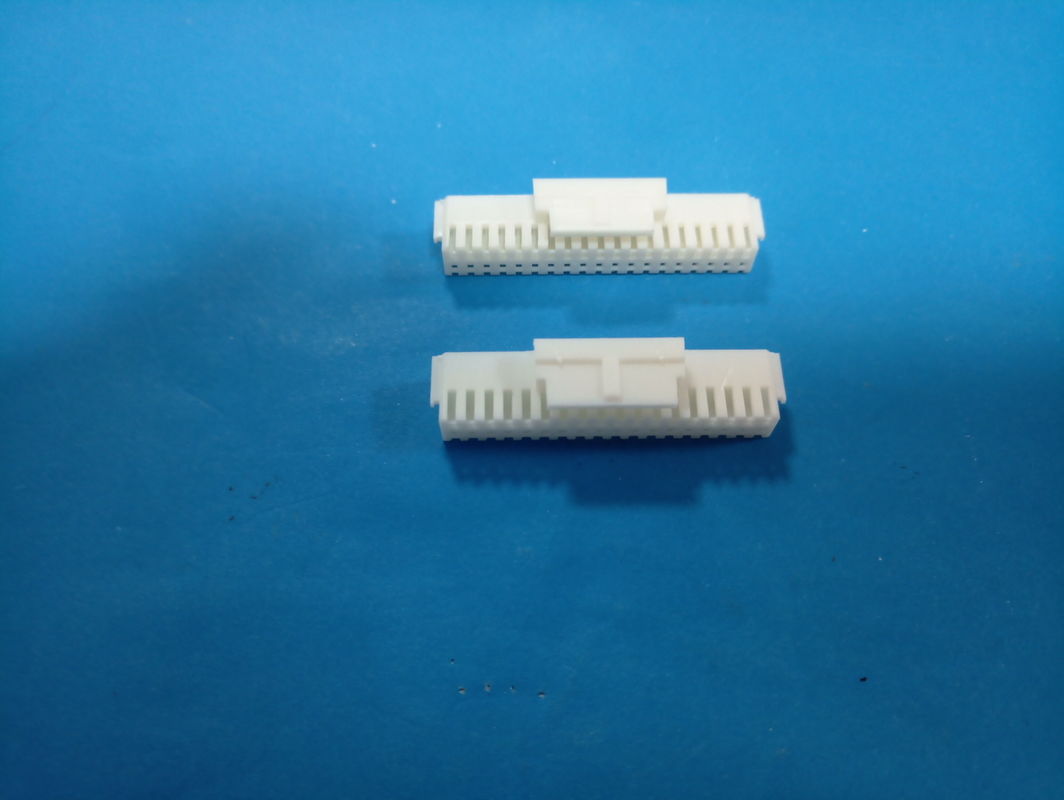

White Color Housing Printed Circuit Board PCB Board Connector PA66 Material Double Row

White Color Housing Printed Circuit Board PCB Board Connector PA66 Material Double Row

    • White Color Housing Printed Circuit Board PCB Board Connector PA66 Material Double Row
    • White Color Housing Printed Circuit Board PCB Board Connector PA66 Material Double Row
    • White Color Housing Printed Circuit Board PCB Board Connector PA66 Material Double Row

    Product Details:

    Place of Origin: CHINA
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT2041

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T, Western Union
    Supply Ability: PE bag packing +outer carton
    Contact Now
    Detailed Product Description
    Category: PCB Board Wafer Number Of Pin: 20
    Pitch: 2.0mm Color: White
    Rating Current: 3A AC/DC Voltage Rating: 250V
    Highlight:

    pcb socket connector

    ,

    pcb header connectors

    White Color Housing Printed Circuit Board PCB Board Connector PA66 Material Double Row





    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces



    Standard Specification:



    Pitch 2.0mm
    Pol4es 2*2-2*16
    Applicable wire AWG#18-22
    Voltage rating 250V AC/DC
    Current rating 5A AC/DC
    Withstand voltage 800V AC/minute
    Working temperature -25°C to +85°C
    Insulation resistance 1000MΩ Min
    Contact resistance

    20MΩ Max



    Primary Competitive Advantages:

    • Service
    • Country of Origin
    • Experienced Staff
    • Guarantee/Warranty
    • International Approvals
    • Price
    • Prompt Delivery
    • Quality Approvals





    Main Export Markets:

    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • North America
    •
