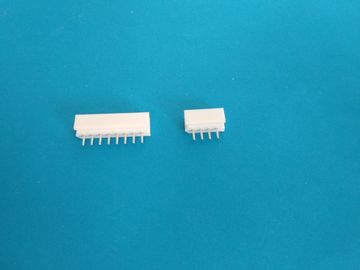

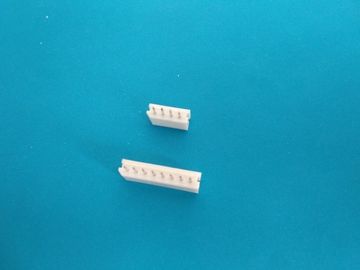

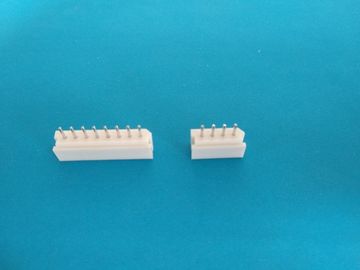

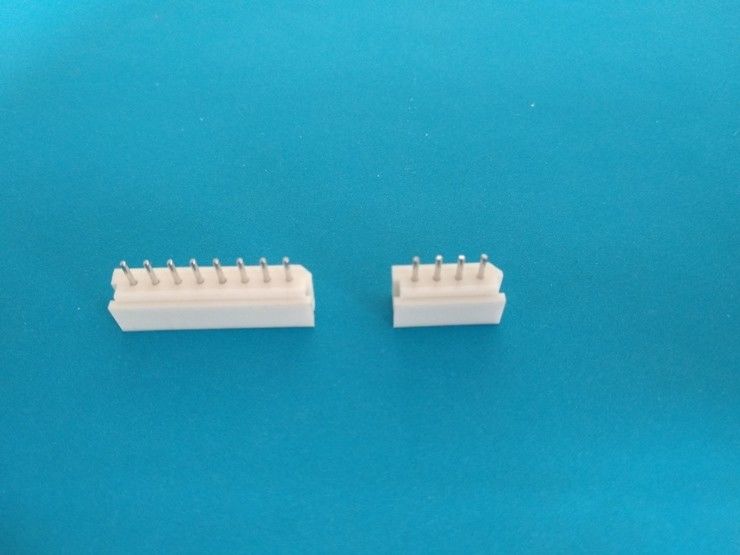

Name: 2 - 16Pin 2.5mm Pitch PCB Connectors Wire to Board Gold-plated Molex5264 Equivalent
Brand: Dongguan JVT Connectors Co., Ltd
SKU: JVT 1136
Availability: InStock

Home Products PCB Connectors Wire to Board

2 - 16Pin 2.5mm Pitch PCB Connectors Wire to Board Gold-plated Molex5264 Equivalent

Product Details:

Place of Origin:	China
Brand Name:	JVT
Certification:	UL ,RoHS ,REACH
Model Number:	JVT 1136

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	Negotiation
Packaging Details:	Tape&Reel
Delivery Time:	6-8 working days
Payment Terms:	T/T, Western Union
Supply Ability:	500000pcs per day

Contact Now

Detailed Product Description

Category:	PCB Connectors Wire To Board	Poles:	2-16
Pitch:	2.5mm	Finish:	Tin-plated/Gold-plated
Material:	Nylon66 UL94V-0	Equivalent:	Molex5264
Highlight:	connector wire to board , wire to board crimp style connectors

2-16Pin , 2.5mm Pitch , PCB Connectors Wire to Board , Dip Type , Tin-plated /Gold-plated

JVT offer a complete range of board to board and wire to board connectors including :pin

header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items.

Specification :

Category	PCB Connectors Wire to Board
Equivalent	Molex5264
Pitch:	2.5mm
Poles:	2-16
Applicable wire:	AWG#22-28
Voltage rating:	250V AC/DC
Current rating:	3A AC/DC
Withstand voltage	1000V AC/minute
Working temperature:	-25°C to +85°C
Contact resistance:	20MΩ Max
Insulation resistance:	1000MΩ Min
Material	Nylon66 UL94V-0
Samples	free
