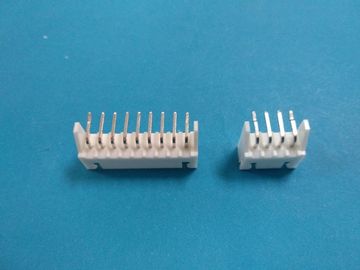

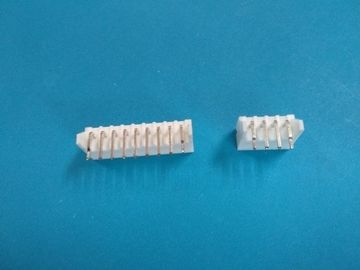

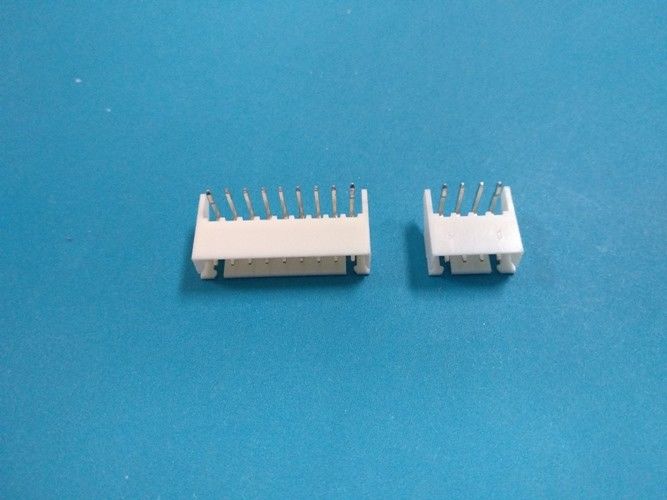

XH2.5mm Pitch , 2-16Pin , Dip Type Tin-plated, PCB Connectors Wire to Board , Right Angle

XH2.5mm Pitch , 2-16Pin , Dip Type Tin-plated, PCB Connectors Wire to Board , Right Angle

    • XH2.5mm Pitch , 2-16Pin , Dip Type Tin-plated, PCB Connectors Wire to Board , Right Angle
    • XH2.5mm Pitch , 2-16Pin , Dip Type Tin-plated, PCB Connectors Wire to Board , Right Angle
    • XH2.5mm Pitch , 2-16Pin , Dip Type Tin-plated, PCB Connectors Wire to Board , Right Angle
    • XH2.5mm Pitch , 2-16Pin , Dip Type Tin-plated, PCB Connectors Wire to Board , Right Angle

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: UL ,RoHS ,REACH
    Model Number: JVT 1001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: Negotiation
    Packaging Details: Tape&Reel
    Delivery Time: 6-8working days
    Payment Terms: T/T, Western Union
    Supply Ability: 500000pcs per day
    Contact Now
    Detailed Product Description
    Part No.: JVT1001WN2-XXSNXK-D Poles: 2-16
    Pitch: 2.5mm Material: Nylon 66 UL94V-2
    Tape: DIP Finish: Tin-plated
    Voltage Rating: 250V AC,DC Current Rating: 3A,AC,DC
    Highlight:

    connector wire to board

    ,

    pcb wire to board connectors



    XH2.5mm Pitch , 2-16Pin , Dip Type Tin-plated, PCB Connectors Wire to Board , Right Angle

    JVT offer a complete range of board to board and wire to board connectors including :pin,mini jumpers, female header,PCB Multipole and housing a wide range of applications including:industrial,Medical and automotive.

    All are offered with small moq's,the majority being stocked items.





    Specification ​:



    Category PCB Connectors Wire to Board
    Material Nylon 66 UL94V-2
    Pitch 2.5mm
    Poles 2-16
    Color White
    Voltage rating 250V AC/DC
    Current rating 3A AC/DC
    Withstand voltage 1000V AC/minute
    Working temperature -25°C to +85°C
    Contact resistance 20MΩ Max
    Insulation resistance 1000MΩ Min
    Samples free
    package 1000pcs/bag





    Payment Details :



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces





    Company Development History :

    XH2.5mm Pitch , 2-16Pin , Dip Type Tin-plated, PCB Connectors Wire to Board , Right Angle





    Our service :

    ♦  Low MOQ: It can meet your business very well.

    ♦ 100% test before delivery

    ♦  Good services: We treat you as our friends.

    ♦  Packaging: Package will do after several discussions with you.

    ♦  fast deliver



    Main Export Markets:

    • Asia

    • Australia

    • Central/South America

    • Mid East/Africa/North America



    Tag:

    connector wire to board,

    pcb wire to board connectors
