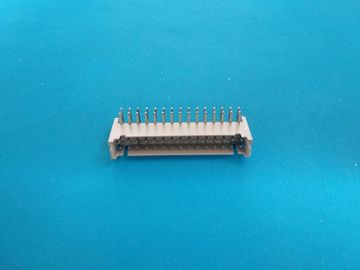

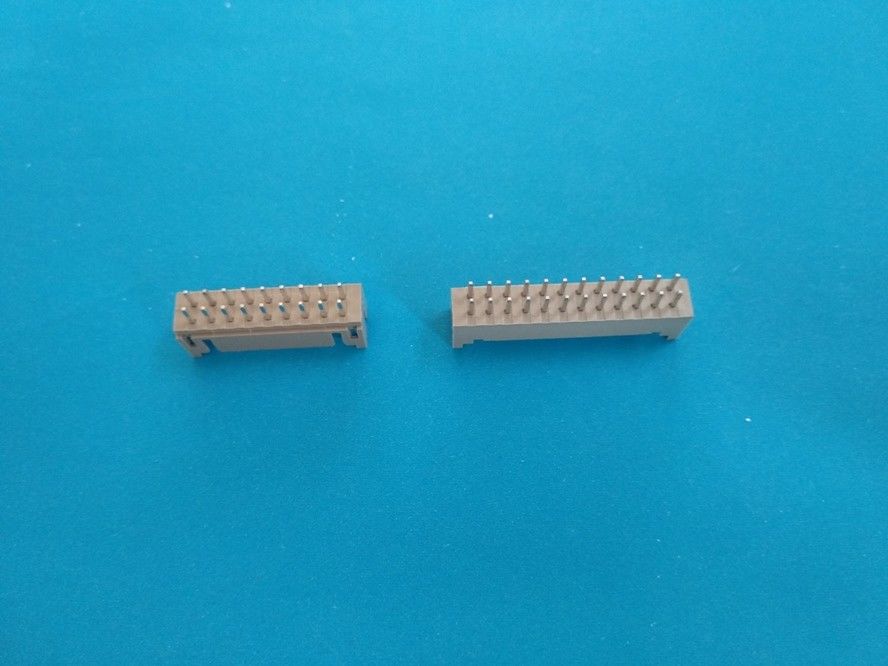

PHD 2.0mm Pitch , Double Row 2-25 Pins, PCB Wire to Board Connectors , Right angle / Vertical

PHD 2.0mm Pitch , Double Row 2-25 Pins, PCB Wire to Board Connectors , Right angle / Vertical

    • PHD 2.0mm Pitch , Double Row 2-25 Pins, PCB Wire to Board Connectors , Right angle / Vertical
    • PHD 2.0mm Pitch , Double Row 2-25 Pins, PCB Wire to Board Connectors , Right angle / Vertical
    • PHD 2.0mm Pitch , Double Row 2-25 Pins, PCB Wire to Board Connectors , Right angle / Vertical
    • PHD 2.0mm Pitch , Double Row 2-25 Pins, PCB Wire to Board Connectors , Right angle / Vertical

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: UL ,RoHS ,REACH
    Model Number: JVT2008

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: Negotiation
    Packaging Details: Tape&Reel
    Delivery Time: 5-7working days
    Payment Terms: T/T, Western Union
    Supply Ability: 500000pcs per day
    Contact Now
    Detailed Product Description
    Poles: 4-50 Pitch: 2.0mm
    Category: Right Angle Or Vertical Type: Dip
    Material: Nylon 66/6T UL 94V-0 Finish: Tin-plated
    Current Rating: 3A AC/ DC Voltage: 250V AC,DC
    Highlight:

    connector wire to board

    ,

    pcb wire to board connectors



    PHD 2.0mm Pitch , Double Row 2-25 Pins, PCB Wire to Board Connectors , Right angle / Vertical

    JVT offer a complete range of board to board and wire to board connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

    All are offered with small moq's ,the majority being stocked items.





    Specification ​:


    Temperature range -25°C - +85°C
    Contact Resistance 20mΩ max
    Insulation Resistance 1000MΩmin
    Poles 2*2-2*25
    Voltage Rating 250V AC/DC
    Current Rating 3A AC/DC
    Withstanding voltage 1000V AC/minute



    Payment Details :



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces





    Equipment:





    PHD 2.0mm Pitch , Double Row 2-25 Pins, PCB Wire to Board Connectors , Right angle / Vertical



    PHD 2.0mm Pitch , Double Row 2-25 Pins, PCB Wire to Board Connectors , Right angle / Vertical





    Main Export Markets :

    ♦ Asia

    ♦ Australia

    ♦ Central/South America

    ♦ Mid East/Africa/North America





    Our Service :

    ♦ Reply your inquiry in 24 working hours

    ♦ Customized design is available,OEM and ODM are welcomed

    ♦ Delivery the goods to our customer all over the world with speed and precision

    ♦ Offer customer the lowest price with high quality of terminal block connector.



    Tag:

    connector wire to board,

    pcb wire to board connectors
