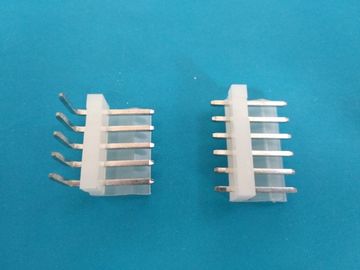

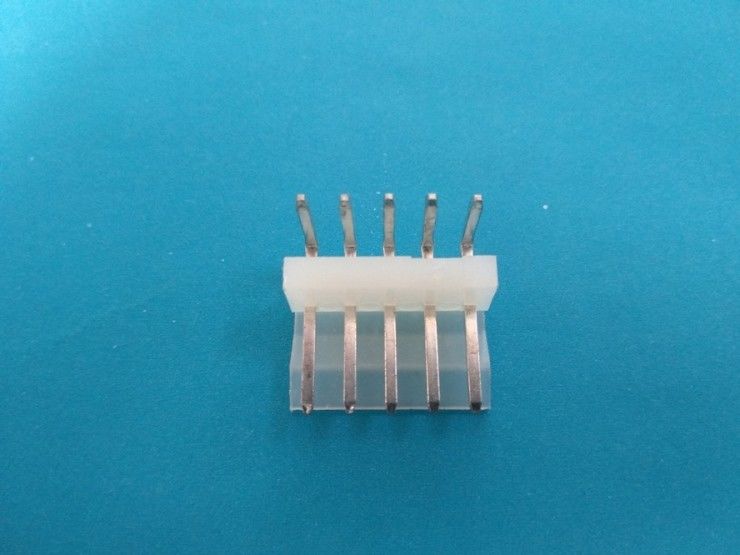

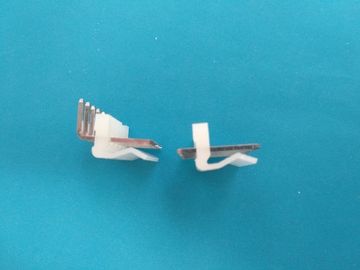

Right angle / Vertical connector , 3.96mm Pitch PCB Board Connector , 2-30 Pin ,Tin-plated

Right angle / Vertical connector , 3.96mm Pitch PCB Board Connector , 2-30 Pin ,Tin-plated

    • Right angle / Vertical connector , 3.96mm Pitch PCB Board Connector , 2-30 Pin ,Tin-plated
    • Right angle / Vertical connector , 3.96mm Pitch PCB Board Connector , 2-30 Pin ,Tin-plated
    • Right angle / Vertical connector , 3.96mm Pitch PCB Board Connector , 2-30 Pin ,Tin-plated
  • Right angle / Vertical connector , 3.96mm Pitch PCB Board Connector , 2-30 Pin ,Tin-plated

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: UL ,RoHS ,REACH
    Model Number: JVT4001

    Payment & Shipping Terms:

    Minimum Order Quantity: 2000
    Price: Negotiation
    Packaging Details: Tape&Reel
    Delivery Time: 5-7working days
    Payment Terms: T/T, Western Union
    Supply Ability: 500000pcs per day
    Contact Now
    Detailed Product Description
    Part No.: JVT4001WNO-XXSNX-D Poles: 2-16
    Pitch: 3.96mm Finish: Tin-plated
    Material: Nylon 66 UL94V-0 Current Rating: 7A AC,DC
    Voltage Rating: 250V AC,DC Contact Resistance: 10mΩ Max



    Right angle/Vertical connector, 3.96mm Pitch , 2-30 Pin , PCB Board Connector , Dip Type Tin-plated


    JVT offer a complete range of board to board and wire to board connectors including :pin,mini jumpers, female header,PCB Multipole and housing a wide range of applications including:industrial,Medical and automotive.

    All are offered with small moq's,the majority being stocked items.





    Specification ​:



    Category PCB Board Connector
    Material Nylon 66 UL94V-0
    Pitch 3.96mm
    Poles 2-16
    Type Dip
    Voltage rating 250V AC/DC
    Current rating 7A AC/DC
    Withstand voltage 1500V AC/minute
    Working temperature -25°C to +85°C
    Contact resistance 10MΩ Max
    Insulation resistance 1000MΩ Min
    Samples free
    package 1000pcs/bag





    Payment Details :



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces





    Service:



    ♦ prefessional and patient pre-service & after-service



    ♦ professsional sales team & engineering team & techinology team



    ♦ puntual delivery time and complete packaging process



    ♦ preferable price and best quality

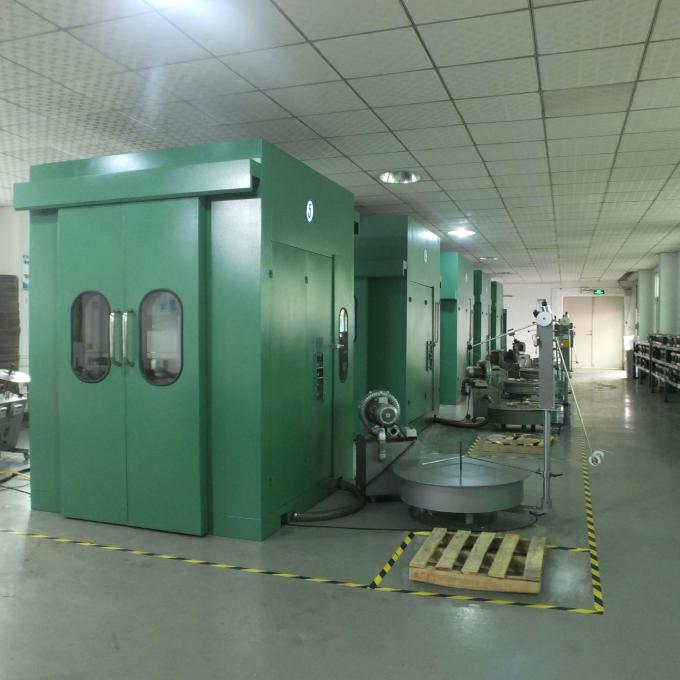

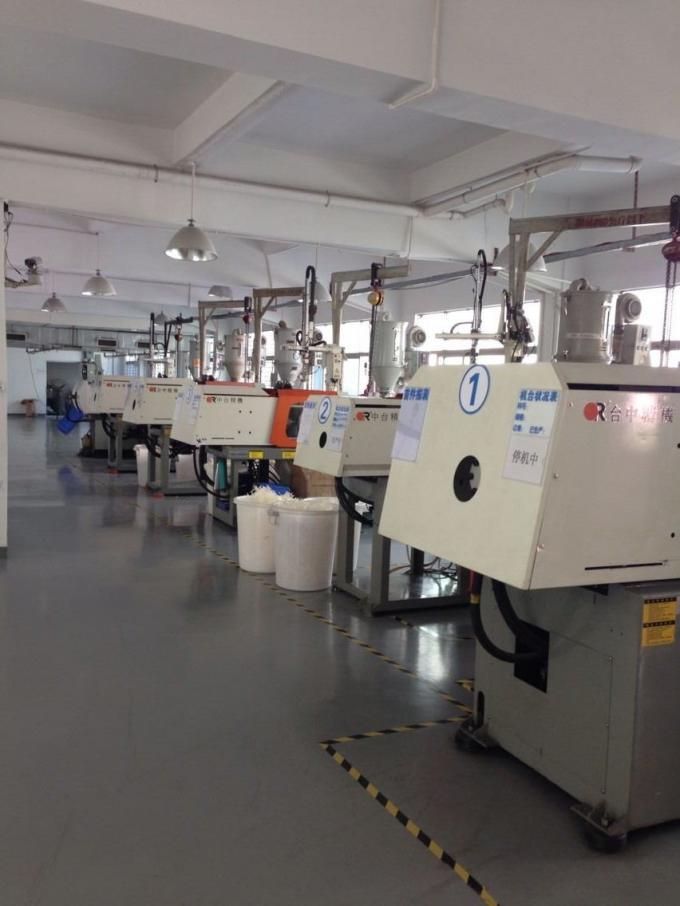

    Equipment :



    Right angle / Vertical connector , 3.96mm Pitch PCB Board Connector , 2-30 Pin ,Tin-plated





    Right angle / Vertical connector , 3.96mm Pitch PCB Board Connector , 2-30 Pin ,Tin-plated



    Main Export Markets :

    ♦  Asia

    ♦  Australia

    ♦  Central/South America

    ♦  Mid East/Africa/North America
