Place of Origin: | China |
Brand Name: | JVT |
Certification: | UL ,RoHS ,REACH |
Model Number: | JVT 1147 |
Minimum Order Quantity: | 1000 |
---|---|
Price: | Negotiation |
Packaging Details: | Tape&Reel |
Delivery Time: | 5-8 working days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 500000pcs per day |
Part No.: | JVT1147WPT-XXSN-D | Poles: | 2-16 |
---|---|---|---|
Pitch: | 1.25mm | Material: | PBT UL94V-0 |
Tape: | DIP | Finish: | Tin-plated |
Voltage Rating: | 125V AC,DC | Current Rating: | 1A AC,DC |

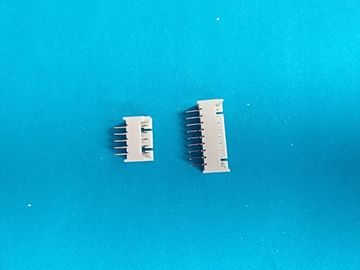

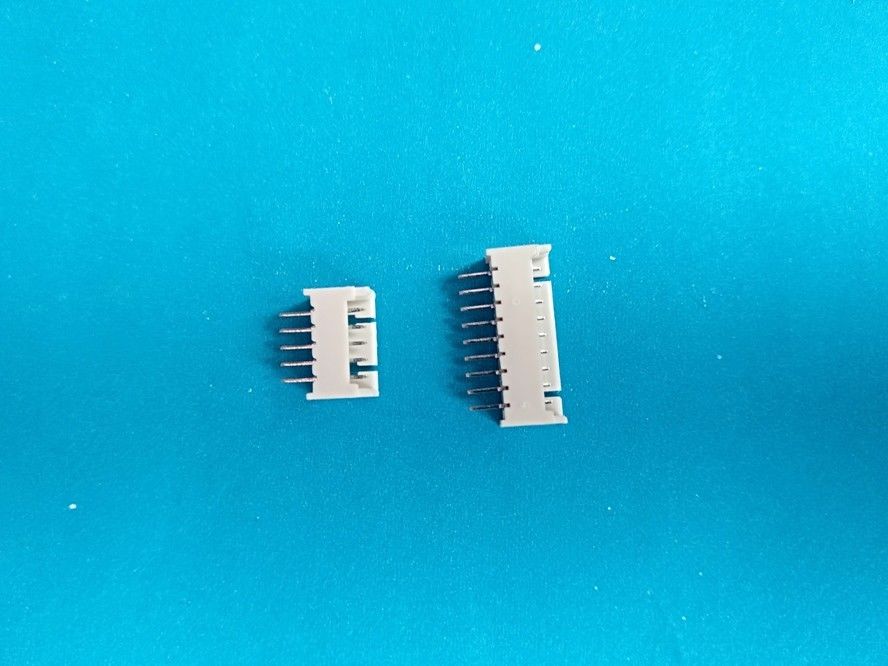

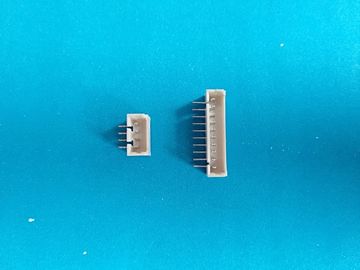

1.25mm Pitch , 2-16 Pin , Wire to Board Connector , Right angle / Vertical , Dip Type Tin-plated
JVT offer a complete range of board to board and wire to board connectors including :pin,mini jumpers, female header,PCB Multipole and housing a wide range of applications including:industrial,Medical and automotive.
All are offered with small moq's,the majority being stocked items.
Specification :
Category | Wire to Board connector |
Material | PBT UL94V-0 |
Pitch | 1.25mm |
Poles | 2-16 |
Type | Dip |
Voltage rating | 125V AC/DC |
Current rating | 1A AC/DC |
Withstand voltage | 250V AC/minute |
Working temperature | -25°C to +85°C |
Contact resistance | 20MΩ Max |
Insulation resistance | 100MΩ Min |
Samples | free |
package | 1000pcs/bag |
Payment Details :
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
Service:
♦ prefessional and patient pre-service & after-service
♦ professsional sales team & engineering team & techinology team
♦ puntual delivery time and complete packaging process
♦ preferable price and best quality
