| Place of Origin: | China |
| Brand Name: | JVT |
| Certification: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT2038-S |
| Minimum Order Quantity: | 10000 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union, L/C |
| Supply Ability: | 300000 per day |
| Category: | Wire To Board Automotive Connector | Pitch: | 2.0mm |
|---|---|---|---|
| Type: | Crimp Style Connector | Feature: | Disconnectable Type |
| Application: | Automotive Devices | Equivalent: | JST-PAD |

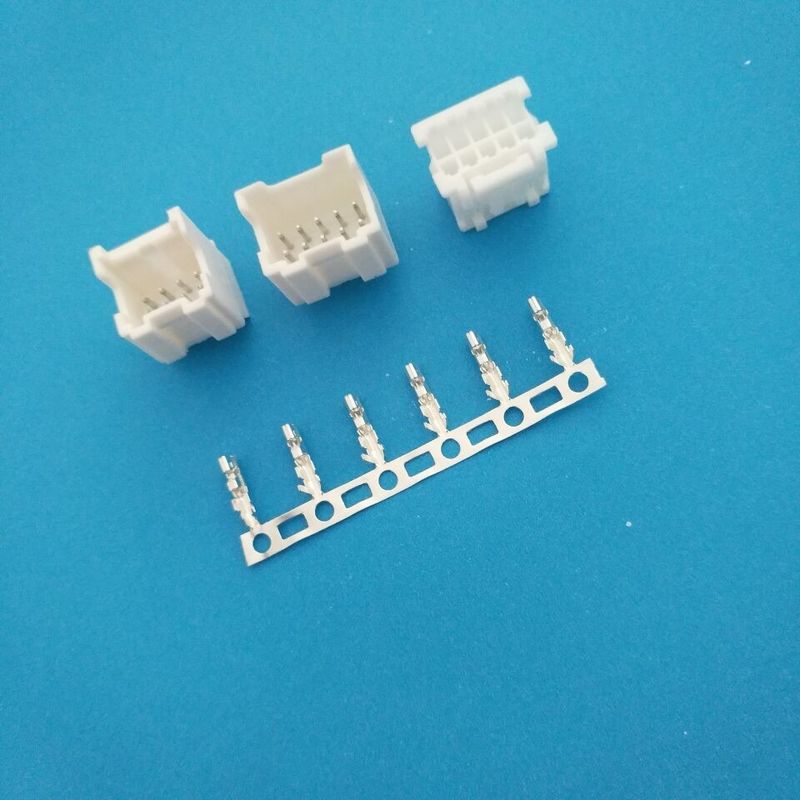

2.0mm Automotive Connectors With Lock / Wire To Board Crimp Style Connectors
Friendly Link:
Standard Specification:
|
Pitch |
2.0mm |
|
Pol4es |
2*2-2*16 |
|
Applicable wire |
AWG#18-22 |
|
Voltage rating |
250V AC/DC |
|
Current rating |
3A AC/DC |
|
Withstand voltage |
800V AC/minute |
|
Working temperature |
-25°C to +85°C |
|
Insulation resistance |
1000MΩ Min |
|
Contact resistance |
20MΩ Max |
Technical Drawing:
|
