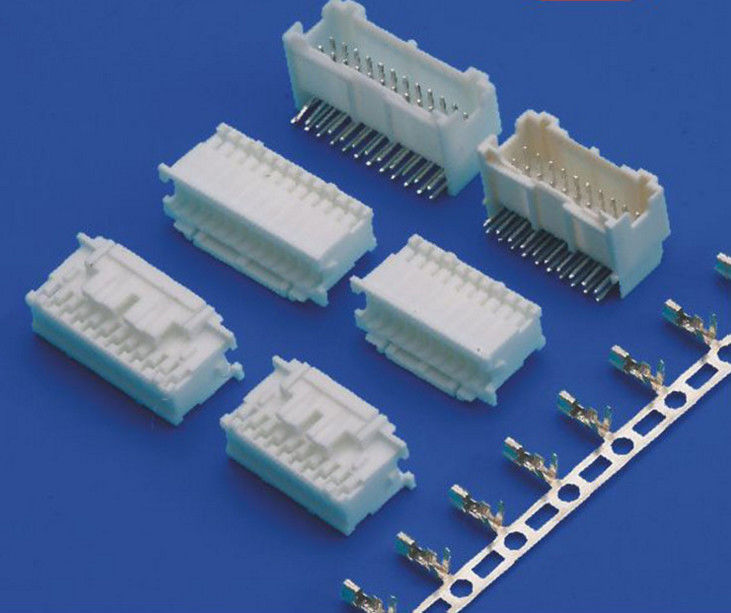

JVT PAD 2.0mm Double Row Wire to Board Crimp style Connector with Secure Locking Devices

JVT PAD 2.0mm Double Row Wire to Board Crimp style Connector with Secure Locking Devices

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2038 Series

Payment & Shipping Terms:

Minimum Order Quantity: 10000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union, L/C
Supply Ability: 300000 per day
Contact Now
Detailed Product Description
Category: Wire To Board Automotive Connector Pitch: 2.0mm
Type: Crimp Style Connector Feature: Disconnectable Type
Application: Automotive Devices Equivalent: JST-PAD

JVT PAD 2.0mm Double Row Wire to Board Crimp style Connector with Secure Locking Devices



Friendly Link:



Cross Part number list.pdf



PCB SMT header connector.pdf





Standard Specification:



Pitch

2.0mm

Pol4es

2*2-2*16

Applicable wire

AWG#18-22

Voltage rating

250V AC/DC

Current rating

3A AC/DC

Withstand voltage

800V AC/minute

Working temperature

-25°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

20MΩ Max





Technical Drawing:



JVT PAD 2.0mm Double Row Wire to Board Crimp style Connector with Secure Locking Devices



JVT PAD 2.0mm Double Row Wire to Board Crimp style Connector with Secure Locking Devices



JVT PAD 2.0mm Double Row Wire to Board Crimp style Connector with Secure Locking Devices



JVT Competitive Advantages:

  • Products with Good Performance
  • High-Efficiency Lead Time
  • Friendly Service
  • Experienced Staff
  • International Approvals
  • Competitive Price



Business Value:



JVT PAD 2.0mm Double Row Wire to Board Crimp style Connector with Secure Locking Devices
