SH Male Connector 6 Pin Pitch 1.0mm , 0.5A 50V Horizontal With Material LCP, UL94V-0

SH Male Connector 6 Pin Pitch 1.0mm , 0.5A  50V Horizontal With Material LCP, UL94V-0

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: UL ,RoHs 2.0 ,ISO9001
Model Number: JVT1254WLP-06SNR-S

Payment & Shipping Terms:

Minimum Order Quantity: 2000
Price: USD 0.002
Packaging Details: Tape &Reel packaging
Delivery Time: 7days
Payment Terms: T/T
Supply Ability: 30000000
Contact Now
Detailed Product Description
Material: LCP UL94V-0 PItch: 1.0mm
Temp Range: -20°C~+85°C Eqiv.: SM06B-SRSS-TB
Match To: SHR-06V-S-B Poles: 2-16

SH Male connector, 6 pin, pitch 1.0mm, 0.5A, 50V, horizontal ,material: LCP, UL94V-0, temp range: -20°C~+85°C



Poles: 2 to 16

Pitch: 1.0mm

Materials: LCP UL94V-0

Current rating: 1A AC/DC

Voltage rating: 250V AC/DC

Temperature range: -20 to +85°C

Contact resistance: 10MΩ (maximum)

Insulation resistance: 1000MΩ (minimum)

Withstanding voltage: 1500V AC/minute

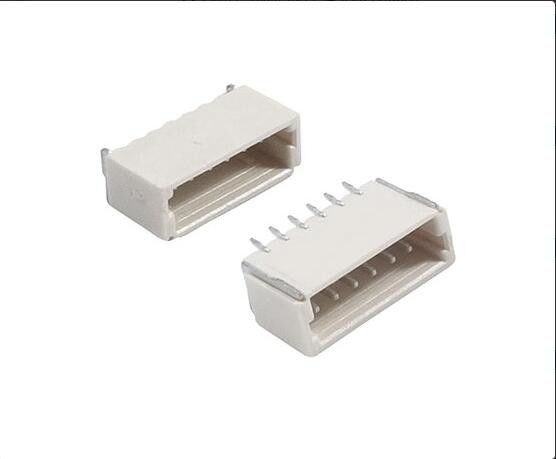

Product photo :



SH Male Connector 6 Pin Pitch 1.0mm , 0.5A  50V Horizontal With Material LCP, UL94V-0



Datasheet :



SH Male Connector 6 Pin Pitch 1.0mm , 0.5A  50V Horizontal With Material LCP, UL94V-0



JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .





Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces
