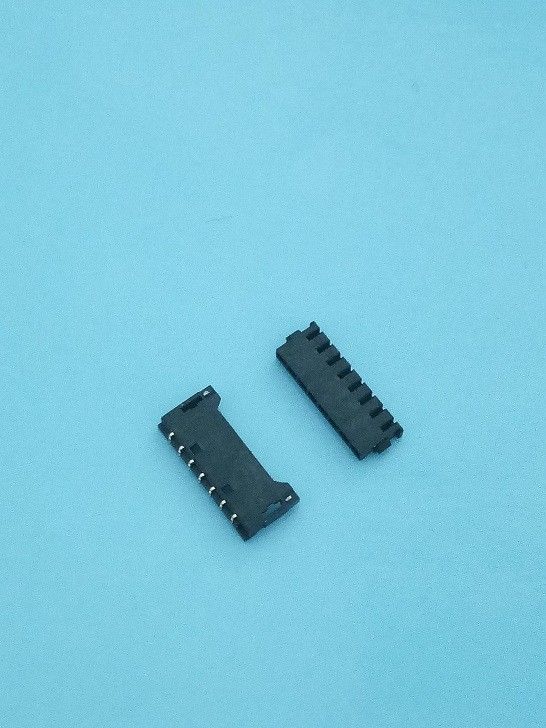

Single Row 1.2mm Pitch SMT Header Connector With Gold - Plated Contact Pins

Single Row 1.2mm Pitch SMT Header Connector With Gold - Plated Contact Pins

    • Single Row 1.2mm Pitch SMT Header Connector With Gold - Plated Contact Pins
    • Single Row 1.2mm Pitch SMT Header Connector With Gold - Plated Contact Pins
    • Single Row 1.2mm Pitch SMT Header Connector With Gold - Plated Contact Pins

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT1224WLP-XXXXR-S

    Payment & Shipping Terms:

    Minimum Order Quantity: 10000 PCS
    Price: Negotiation
    Packaging Details: Reel packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 300000 per day
    Contact Now
    Detailed Product Description
    Pitch: 1.2mm Color: Black
    Rating Current: 2A AC/DC No.of Pins: 8
    Equivalent: Molex 1.2mm Plated Style: Gold-plated
    Highlight:

    smt board to board connector

    ,

    pcb board to board connectors

    1.2mm Pitch Single Row SMT Header Connector With Gold - Plated Contact Pins





    Friendly



    PCB SMT header connector.pdf

    Cross Part number list.pdf



    Specification Standardized:





    Pitch

    1.2mm



    Poles

    8



    Applicable wire

    28#



    Rating Voltage

    50V AC/DC



    Rating Current

    2A AC/DC



    Withstand voltage

    500V AC/minute



    Operating temperature

    -25°C to +85°C



    Insulation resistance

    100MΩ Min



    Contact resistance

    20MΩ Max.







    Drawing





    Single Row 1.2mm Pitch SMT Header Connector With Gold - Plated Contact Pins



    Single Row 1.2mm Pitch SMT Header Connector With Gold - Plated Contact Pins



    Single Row 1.2mm Pitch SMT Header Connector With Gold - Plated Contact Pins
