| Place of Origin: | China |
| Brand Name: | JVT |
| Certification: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT3026WXX-2X2SNRP-D |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per week |
| Category: | Wire To Board Crimp Style Connectors | Cross Part: | Molex 3.0mm Micro-Fit |
|---|---|---|---|
| Type: | DIP Type, Right Angle | Pitch: | 3.0mm |
| Color: | Black | Poles: | 2*1-2*12 |

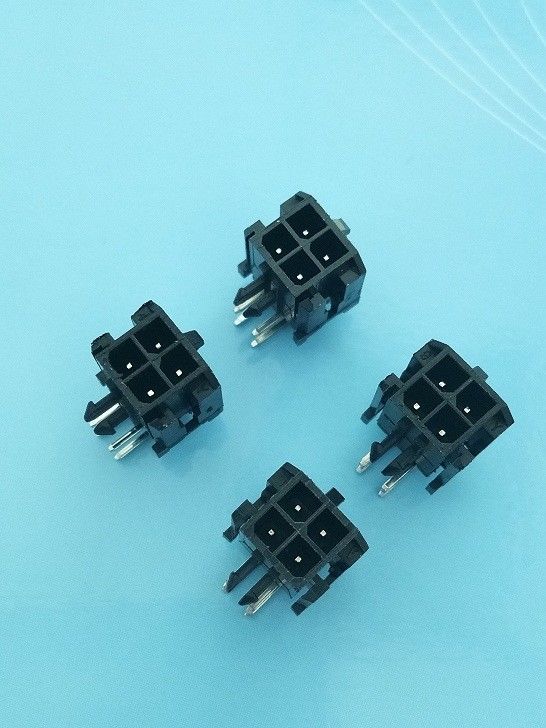

Equivalent of Molex 3.0mm Micro-Fit, Tin-plated Right Angle, DIP Wafer Connector, Automotive Connector
Standardized Specification:
| Pitch | 3.0mm |
| No.of contact | 2*1-2*12 |
| Equivalent | Molex Micro-Fit |
| Rating Voltage | 250V AC/DC |
| Rating Current | 5A AC/DC |
| Voltage Withstand | 1500V AC/minute |
| Operating temperature | -25°C to +105°C |
| Insulation resistance | 1000MΩ Min |
| Contact resistance | 10MΩ Max. |
Drawing
