| Place of Origin: | China |
| Brand Name: | JVT |
| Certification: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT2038WNO-10SNWHR-D |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per day |
| Category: | PCB Board Header Connector | Angle: | Straight |
|---|---|---|---|
| Type: | DIP | Number Of Pins: | 10 |

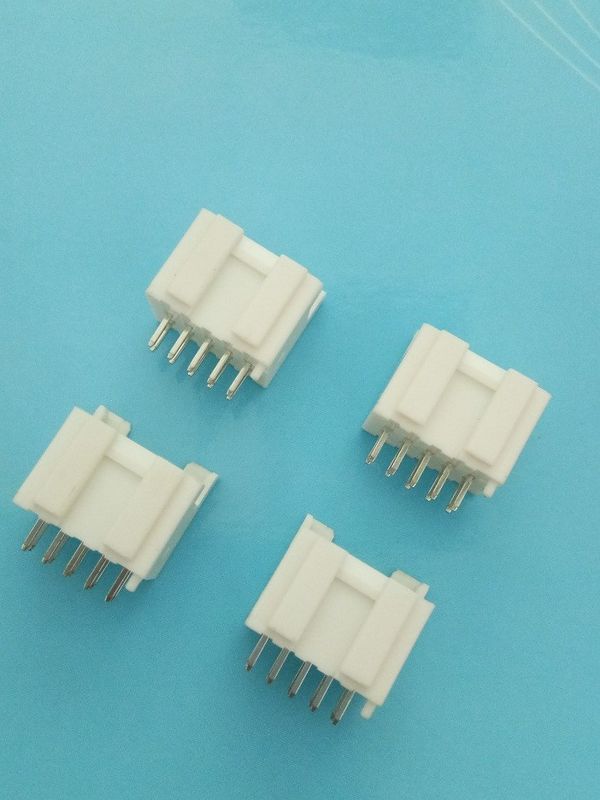

PAD 2.0mm Straight header connector , DIP 10 Pins PCB board Connectors ,daul row
Friendly Link:
Material Specification:
Terminal: Phosphor Bronze or Brass ,Tin plated
Housing: PA66,UL94V-0
Wafer: Nylon 66 UL94V-0
PIN: Brass ,Tin plated
Standard Specification:
|
Pitch |
2.0mm |
|
Pol4es |
2*2-2*16 |
|
Applicable wire |
AWG#18-22 |
|
Voltage rating |
250V AC/DC |
|
Current rating |
3A AC/DC |
|
Withstand voltage |
800V AC/minute |
|
Working temperature |
-25°C to +85°C |
|
Insulation resistance |
1000MΩ Min |
|
Contact resistance |
20MΩ Max |
Drawing
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
Our advantage
|
Favorable unit price
|
|
Strict quality control
|
|
Shortest lead time
|
|
Professional team( from Tool esigning stamping,Injection molding assembling,Testing to packing)
|
|
Accelerated equipments:10 automated injection molding
20 automated pin - setting
6 high precision stamping machines
|
|
|
