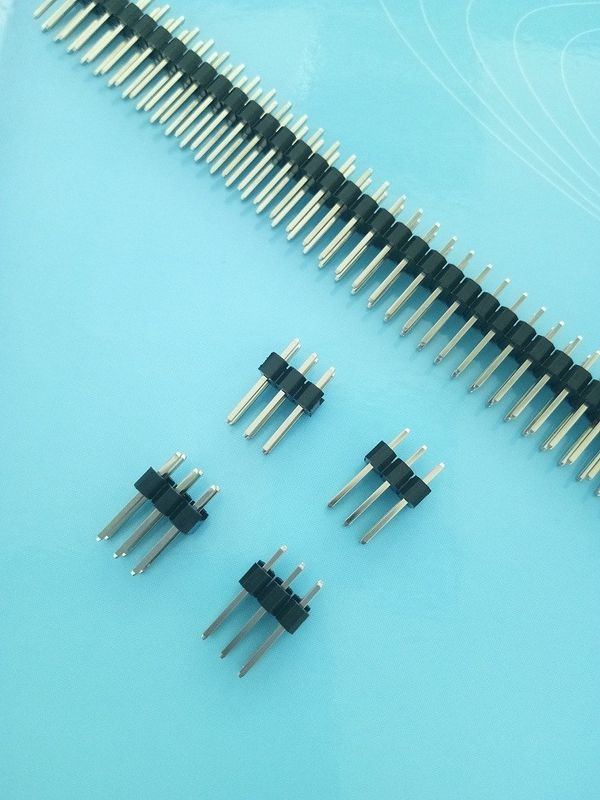

Dual Row DIP Pin Header PCB Electrical Pin Connectors Pitch 2.54mm Gold Flash Plating

Dual Row DIP Pin Header PCB Electrical Pin Connectors Pitch 2.54mm Gold Flash Plating

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT2547H25-2*XX-U65D30

Payment & Shipping Terms:

Minimum Order Quantity: 5000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300000 per day
Contact Now
Detailed Product Description
Pitch: 2.54mm No.of Pins: 2*1-2*40
Type Of Row: Dual Row Color: Black
Plating: Gold Flash Standard: PBT

Pitch 2.54mm Dual Row DIP Pin Header PCB Board Connector with PBT Material



Friendly Link:



Cross Part number list.pdf





Specification Standardized:





Pitch

2.54mm

Pins

2*1-2*40

Applicable wire

#28-32

Rating Voltage

500V AC/DC

Rating Current

3A AC/DC

Withstand voltage

1000V AC/minute

Operating temperature

-40°C to +85°C

Insulation resistance

1000MΩ Min

Contact resistance

20MΩ Max.





Material Specification :



Housing: PBT,UL94V-0



PIN: Brass,Gold plated







Drawing:





Dual Row DIP Pin Header PCB Electrical Pin Connectors Pitch 2.54mm Gold Flash Plating





Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:5000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
