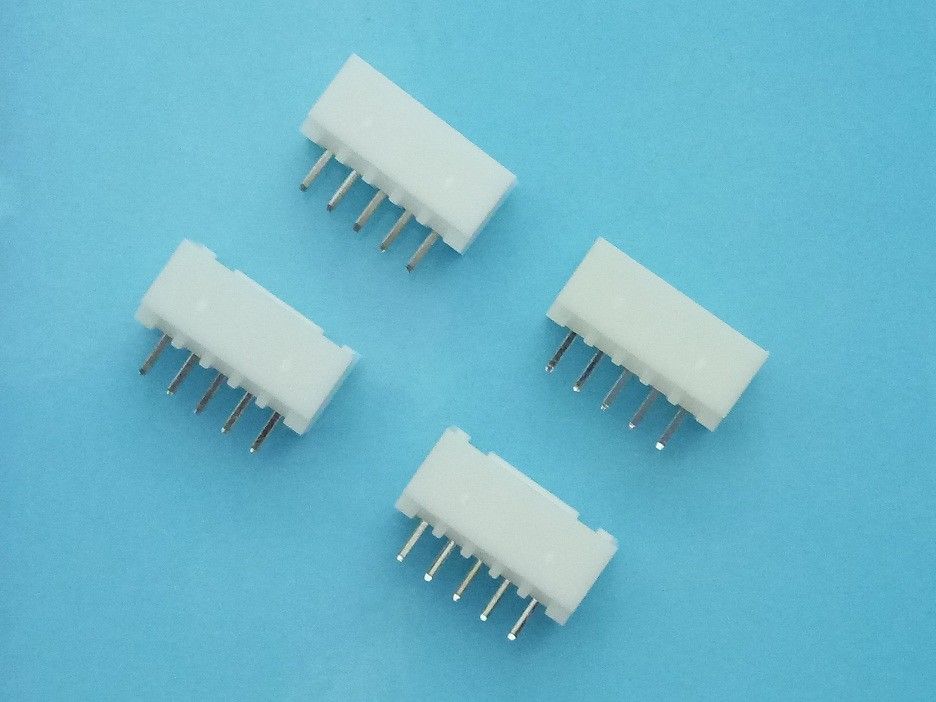

5 Pole 2.5mm Pitch PCB Connectors Wire To Board DIP Vertical Type Wafer Connector

    • 5 Pole 2.5mm Pitch PCB Connectors Wire To Board DIP Vertical Type Wafer Connector
    • 5 Pole 2.5mm Pitch PCB Connectors Wire To Board DIP Vertical Type Wafer Connector
  • 5 Pole 2.5mm Pitch PCB Connectors Wire To Board DIP Vertical Type Wafer Connector

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT2501

    Payment & Shipping Terms:

    Minimum Order Quantity: 10000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 300000 per day
    Contact Now
    Detailed Product Description
    Series: XHB Connector Pitch: 2.5mm
    Rating Current: 3A AC / DC Contact Material: Brass
    Contact Resistance: 20MΩ Min

    Pitch of 2.5mm 5 Pin PCB Wire to Board DIP Vertical Type Wafer Connector





    Friendly Link:



    Cross Part number list.pdf





    Specification Standardized:



    Pitch: 2.5mm



    Poles: 2-12



    Applicable wire: AWG#22-28



    Voltage rating: 250V AC/DC



    Current rating: 3A AC/DC



    Withstand voltage: 1000V AC/minute



    Working temperature: -25°C to +85°C



    Insulation resistance: 1000MΩ Min



    Contact resistance: 20MΩ Max.

    •

    Material Specification :



    Terminal: Phosphor Bronze or Brass ,Tin plated



    Housing: Nylon 66 UL94V-0



    Wafer: Nylon 66 UL94V-0



    PIN: Brass ,Tin plated



    Drawing



    5 Pole 2.5mm Pitch PCB Connectors Wire To Board DIP Vertical Type Wafer Connector



    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces



    Our advantage





    Favorable unit price



    Strict quality control



    Shortest lead time



    Professional team( from Tool esigning stamping,Injection molding assembling,Testing to packing)



    Accelerated equipments:10 automated injection molding
                                            20 automated pin - setting
                                           6 high precision stamping machines


    Primary Competitive Advantages:



    • Service
    • Country of Origin
    • Experienced Staff
    • Guarantee/Warranty
    • International Approvals
    • Price
    • Prompt Delivery
    • Quality Approvals





    Main Export Markets:



    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • North America
