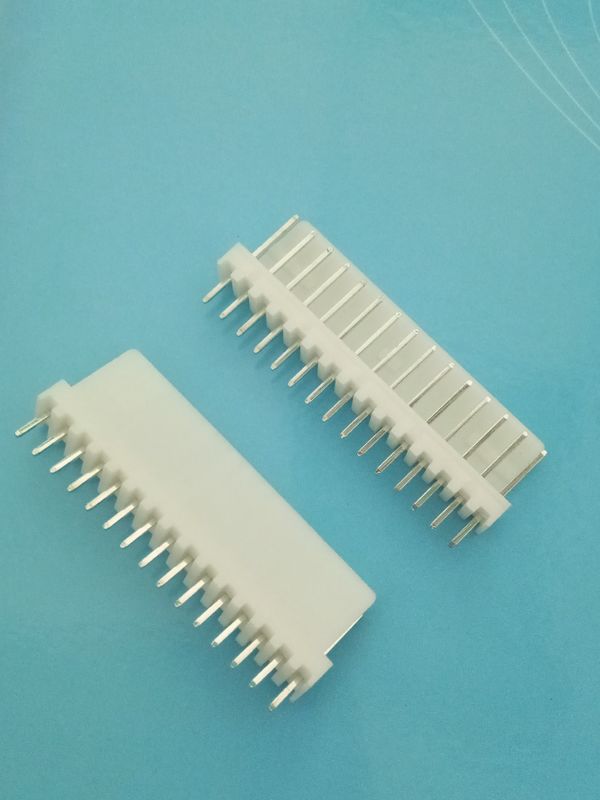

2.54mm Pitch Solder Wire To Board Power Connector Vertical Type With White Color

2.54mm Pitch Solder Wire To Board Power Connector Vertical Type With White Color

    • 2.54mm Pitch Solder Wire To Board Power Connector Vertical Type With White Color
    • 2.54mm Pitch Solder Wire To Board Power Connector Vertical Type With White Color
    • 2.54mm Pitch Solder Wire To Board Power Connector Vertical Type With White Color

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT8001WN2-15SN-D

    Payment & Shipping Terms:

    Minimum Order Quantity: 10000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Pitch: 2.54mm Color: White
    Current Rating: 3A AC / DC Circuits: 2 - 20#
    Equivalent: Molex 2510 Type: Vertical Type
    Highlight:

    wire to board power connector

    ,

    circuit board pin connectors

    Wire to Board Connector 2.54mm Pitch Solder Connector Vertical Type with White Color





    Cross Part number list.pdf

    2016 JVT catalogue.pdf





    Standard Specification:



    Pitch: 2.54mm



    Poles: 2-20#



    Voltage rating: 250V AC/DC



    Current rating: 3A AC/DC



    Withstand voltage: 1000V AC/minute



    Working temperature: -25°C to +85°C



    Insulation resistance: 1000MΩ Min



    Contact resistance: 20MΩ Max.



    Technical Datasheet:



    2.54mm Pitch Solder Wire To Board Power Connector Vertical Type With White Color



    Competitive Advantages:



    We are connectors manufacturer with over 15 years experience.



    1. Complete Product range.



    2. Products Certificate— ISO9001:2008,UL:E364171,CSA, TUV,SGS.



    3. Close to Shenzhen Port.



    4. Punctual & Short lead time.



    5. Good quality & Competitive Price.



    Application:



     Car audio

    Household appliances

     Photocopier

    GPS

     Fax machine

    The set-top box

     Printer

    Control panel





    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces



    Main Export Markets:

    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • North America









    Tag:

    wire to board power connector,

    circuit board pin connectors

    Contact Details
    Dongguan JVT Connectors Co., Ltd

    Contact Person: Diana Li

    Tel: +8613712535997
