Computers JVT Wire To Board Connector 1.00mm Pitch Vertical / Horizontal

Computers JVT Wire To Board Connector 1.00mm Pitch Vertical / Horizontal

Computers JVT Wire To Board Connector 1.00mm Pitch Vertical / Horizontal

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT1253

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Application: Signal, Wire-to-Board, Wire-to-Wire Equivalent: JST SH Series
Pitch - Mating Interface: 1.0mm Poles: 2 - 15
Category: Crimp Housings Flammability: 94V-0

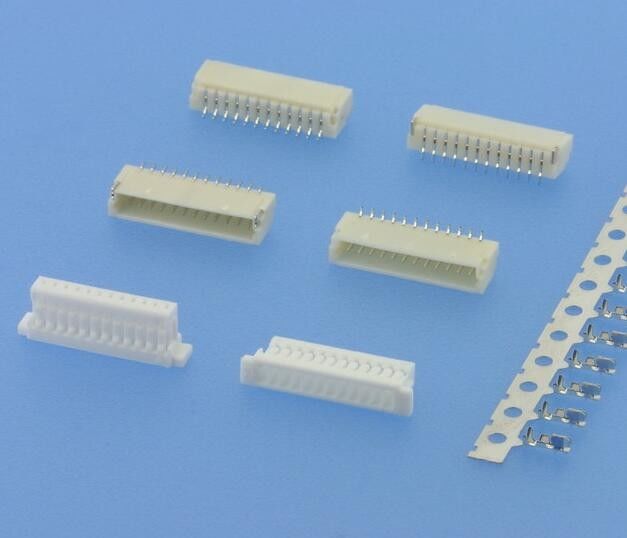

JVT wire to board connector , SMT Friction Lock Headers / Crimp Housings, 1.00mm Pitch, Vertical/Horizontal



Specification Standardized:



Insulator Material: LCP, PBT, PA46, PA6T, PA9T

Insulator Flammability: UL94V-0

Terminal Material: Phosphor bronze or brass

Operating temperature: -25 + 85°C

Climatic category (IEC): 55/125/21

Operating Humity range: Annual mean 75%

Insulator color: black, gray, white

Tail style: straight DIP type, SMT type- straight, SMT type- horizontal



Computers JVT Wire To Board Connector 1.00mm Pitch Vertical / Horizontal

Computers JVT Wire To Board Connector 1.00mm Pitch Vertical / Horizontal




Application



Our products are widely used in a variety of markets and applications, including:

  • Telecom and datacom systems and equipment
  • Computers, peripherals, systems
  • Industrial controls and robotics
  • Instrumentation
  • Medical
  • Test and Measurement
  • Automotive
  • Avionic and Military



Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces





Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
