Name: 2.54mm Pitch Straight Pin Header Connector 0.64mm Square Pin Copper Alloy
Brand: Dongguan JVT Connectors Co., Ltd
SKU: JVT2547H25-XX
Availability: InStock

Home Products Pin Header Connector

2.54mm Pitch Straight Pin Header Connector 0.64mm Square Pin Copper Alloy

Product Details:

Place of Origin:	China
Brand Name:	JVT
Certification:	ISO9001/SGS/UL/ROHS/Reach
Model Number:	JVT2547H25-XX

Payment & Shipping Terms:

Minimum Order Quantity:	1000 PCS
Price:	Negotiation
Packaging Details:	PE bag packing +outer carton
Delivery Time:	7-10 working days
Payment Terms:	T/T or Western Union
Supply Ability:	300000 per month

Contact Now

Detailed Product Description

Pitch:	2.54mm	No.of Poles:	2-50
Type Of Row:	1/2/3	Housing Color:	Black
PCB Mounting Orientation:	Staright	Connector System:	Board-to-Board
Highlight:	electrical pin connectors , pcb pin header

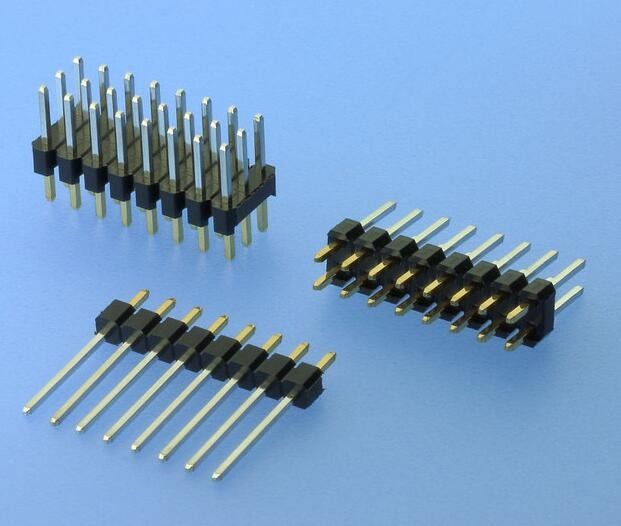

Pin Headers, 2.54mm Pitch, Straight, 1/2/3 Rows,gold fash plating ,0.64mm square pin, copper alloy

Datasheet (PDF) & Other Documents Download center:

1.2016 JVT catalogue.pdf

2.PCB SMT header connector.pdf

Specification Standardized:

Pitch	2.54mm
Poles	2-50
Rating Voltage	200V AC/DC
Rating Current	3A AC/DC
Withstand voltage	1000V AC/minute
Operating temperature	-40°C to +85°C
Insulation resistance	1000MΩ Min
Contact resistance	20MΩ Max.
