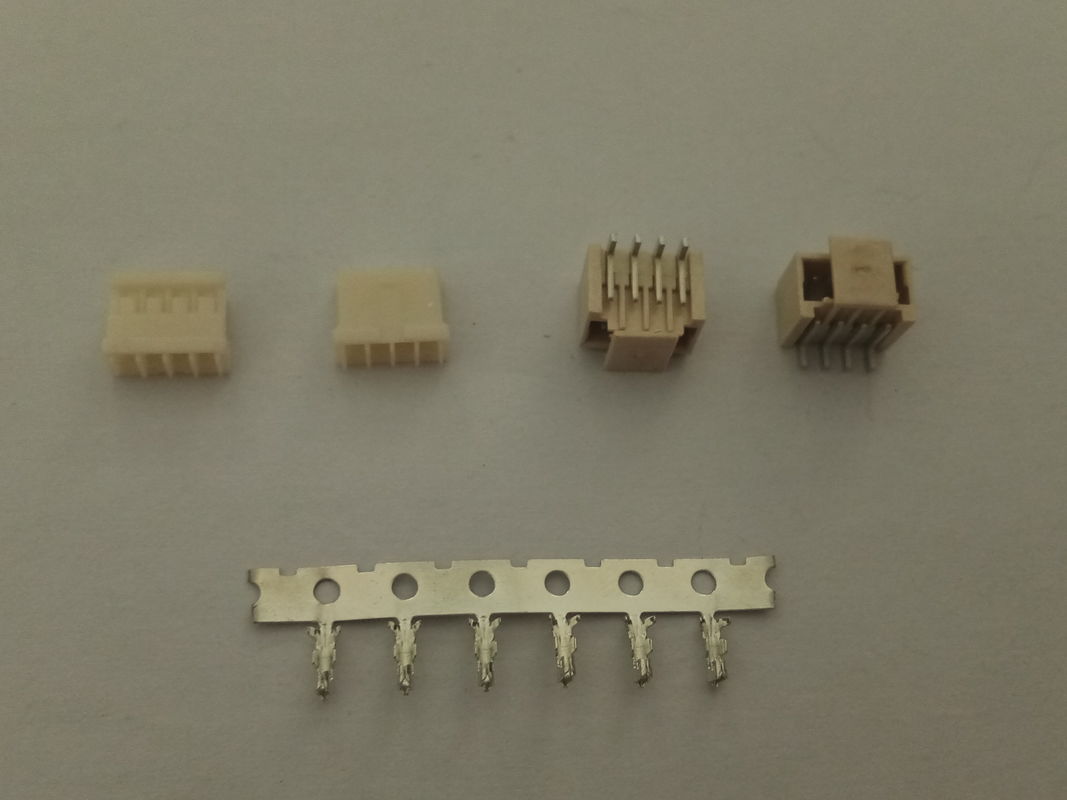

SMT Right Angle 2 - 15 Poles PCB Connectors Wire To Board 1.5mm Pitch Connector

SMT Right Angle 2 - 15 Poles PCB Connectors Wire To Board 1.5mm Pitch Connector

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT1502 Series

Payment & Shipping Terms:

Minimum Order Quantity: 5000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Material: Nylon66 UL94V-0 Pitch: 1.5mm
Equivalent: Molex 87439 Poles: 2-15

Equivalent of Molex 87439 1.5mm connector, SMT, Right Angle and Vertical Type



Cross Part number list.pdf

2016 JVT catalogue.pdf







Technical Datasheet:



SMT Right Angle 2 - 15 Poles PCB Connectors Wire To Board 1.5mm Pitch Connector







SMT Right Angle 2 - 15 Poles PCB Connectors Wire To Board 1.5mm Pitch Connector









Standardized Specification:



Pitch

1.5mm

No.of contact

2-15

Equivalent

Molex87439

Rating Voltage

350V AC/DC

Rating Current

3A  AC/DC

Voltage Withstand

500V AC/minute

Operating temperature

-40°C to +105°C

Insulation resistance

1000MΩ Min

Contact resistance

20MΩ Max.





Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Competitive Advantages:

We are connectors manufacturer with over 15 years experience.


1. Complete Product range.


2. Products Certificate— ISO9001:2008,UL:E364171,CSA, TUV,SGS.


3. Close to Shenzhen Port.


4. Punctual & Short lead time.


5. Good quality & Competitive Price.



Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • America
  • Europe
