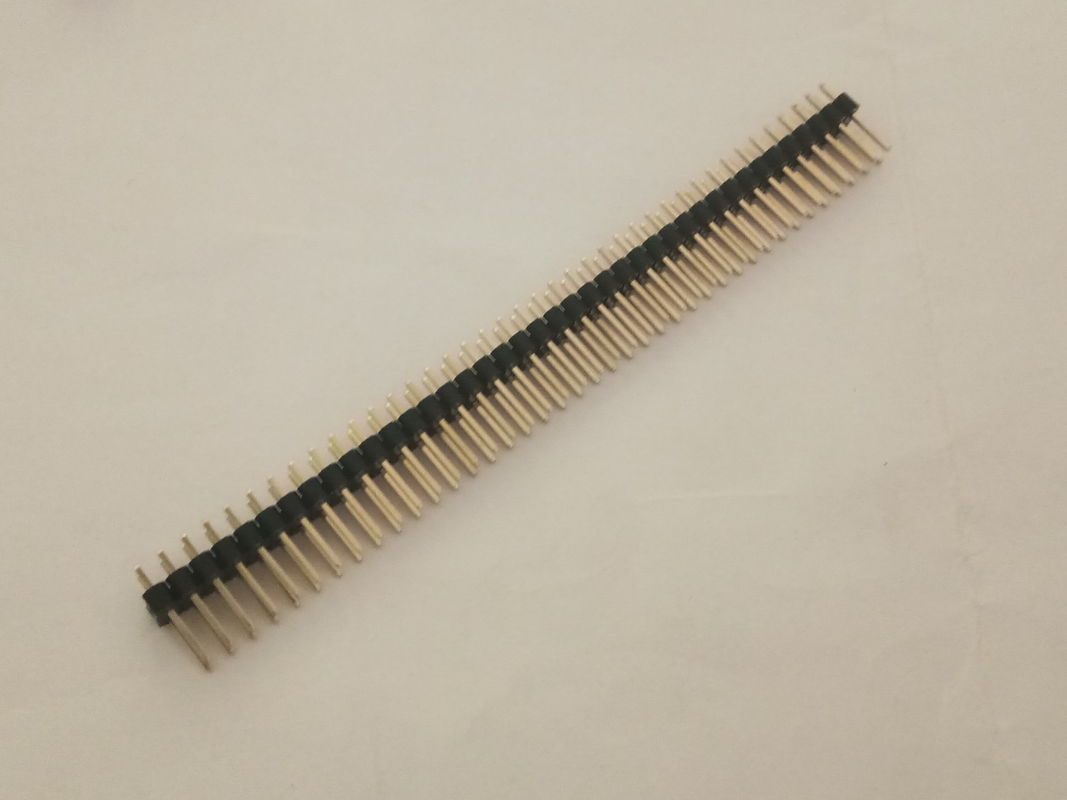

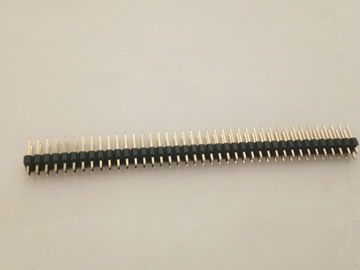

Pitch 2.54mm DIP Pin Header Connector , Black Color Dual Row Electrical Connectors

    • Pitch 2.54mm DIP Pin Header Connector , Black Color Dual Row Electrical Connectors
    • Pitch 2.54mm DIP Pin Header Connector , Black Color Dual Row Electrical Connectors
  • Pitch 2.54mm DIP Pin Header Connector , Black Color Dual Row Electrical Connectors

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT2547H25-2*40-U65D30

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Pitch: 2.54mm No.of Pins: 2*40
    Type Of Row: Dual Row Color: Black
    Plating: Gold Flash Standard: PBT

    Pitich 2.54mm SMT Pin Header Connector , Black Color Single Row Electrical Pins Connectors





    Specification Standardized:





    Pitch

    2.54mm

    Pins

    2*40

    Applicable wire

    #28-32

    Rating Voltage

    500V AC/DC

    Rating Current

    3A AC/DC

    Withstand voltage

    1000V AC/minute

    Operating temperature

    -40°C to +85°C

    Insulation resistance

    1000MΩ Min

    Contact resistance

    20MΩ Max.





    Material Specification :



    Housing: PBT,UL94V-0



    PIN: Brass,Gold plated

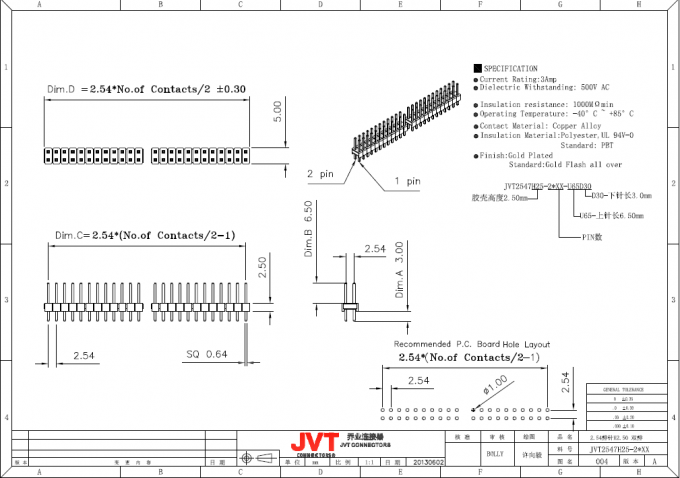

    Drawing:





    Pitch 2.54mm DIP Pin Header Connector , Black Color Dual Row Electrical Connectors





    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:5000 Pieces



    Primary Competitive Advantages:

    • Service
    • Country of Origin
    • Experienced Staff
    • Guarantee/Warranty
    • International Approvals
    • Price
    • Prompt Delivery
    • Quality Approvals





    Main Export Markets:

    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • North America







    Equipment and Service:



    10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



    prefessional and patient pre-service & after-service



    professsional sales team & engineering team & techinology team



    puntual delivery time and complete packaging process



    preferable price and best quality
