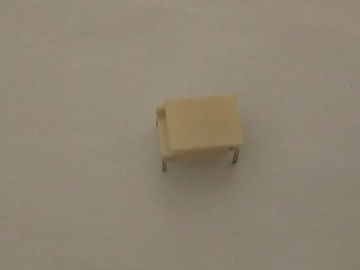

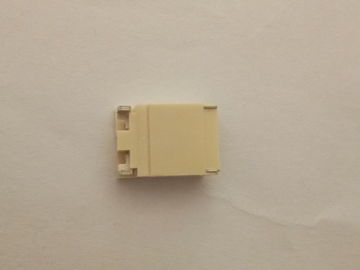

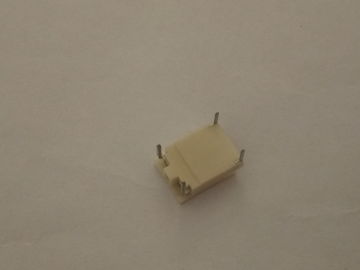

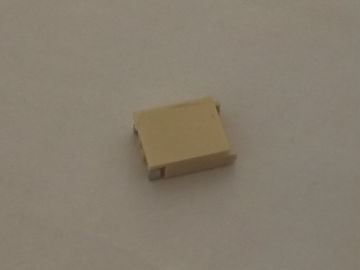

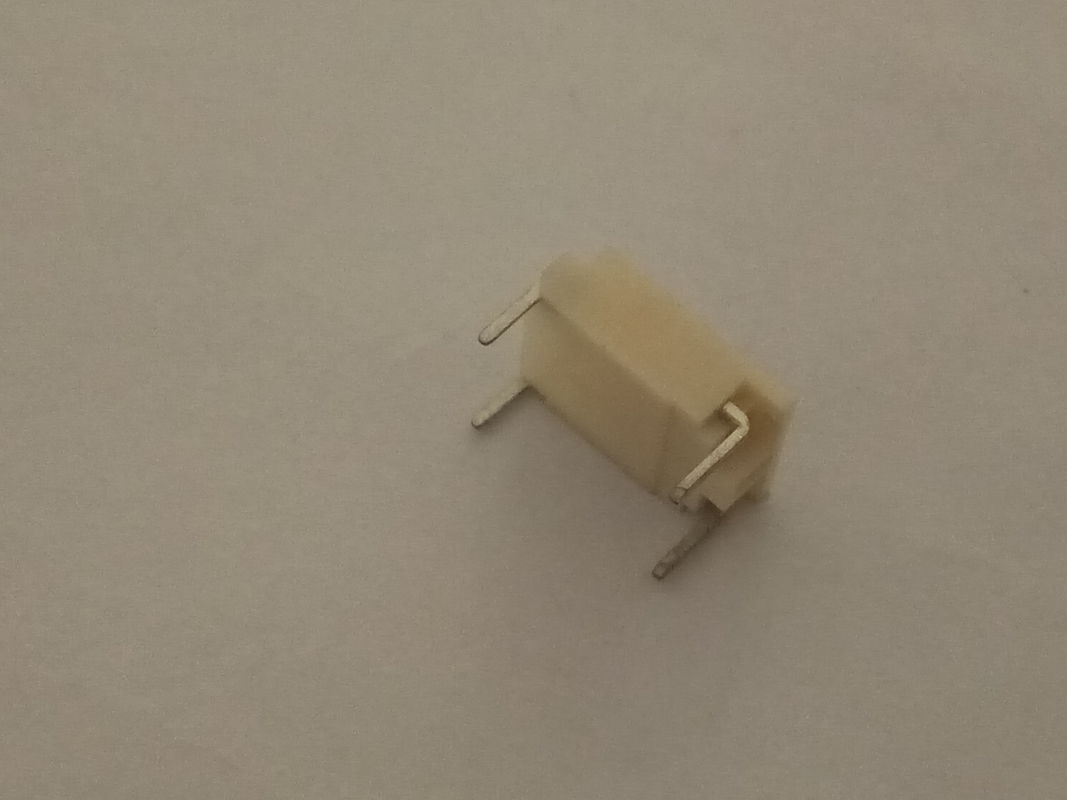

Beige SMT Header Connector Wafer SMD / DIP Header Connector PA9T Material Base

Beige SMT Header Connector Wafer SMD / DIP Header Connector PA9T Material Base

    • Beige SMT Header Connector Wafer SMD / DIP Header Connector PA9T Material Base
    • Beige SMT Header Connector Wafer SMD / DIP Header Connector PA9T Material Base
    • Beige SMT Header Connector Wafer SMD / DIP Header Connector PA9T Material Base
    • Beige SMT Header Connector Wafer SMD / DIP Header Connector PA9T Material Base
    • Beige SMT Header Connector Wafer SMD / DIP Header Connector PA9T Material Base
    • Beige SMT Header Connector Wafer SMD / DIP Header Connector PA9T Material Base
  • Beige SMT Header Connector Wafer SMD / DIP Header Connector PA9T Material Base

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT2012W9T-2SNR-D/S

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Pitch: 3.5mm Color: Beige
    Rating Current: 1A AC/DC No.of Pins: 2
    Equivalent: BH 3.5 Type: SMD / DIP

    3.5mm Pitch 2 Poles Wafer SMD Header Connector PA9T Material Base





    Technical Datasheet:



    PCB SMT header connector.pdf

    Cross Part number list.pdf



    Specification Standardized:





    Pitch

    3.5mm



    Poles

    2



    Applicable wire

    24#-28#



    Rating Voltage

    100V AC/DC



    Rating Current

    1A AC/DC



    Withstand voltage

    800V AC/minute



    Operating temperature

    -25°C to +85°C



    Insulation resistance

    500MΩ Min



    Contact resistance

    10MΩ Max.







    Drawing:





    Beige SMT Header Connector Wafer SMD / DIP Header Connector PA9T Material Base



    Beige SMT Header Connector Wafer SMD / DIP Header Connector PA9T Material Base





    Beige SMT Header Connector Wafer SMD / DIP Header Connector PA9T Material Base



    Beige SMT Header Connector Wafer SMD / DIP Header Connector PA9T Material Base









    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:5000 Pieces
