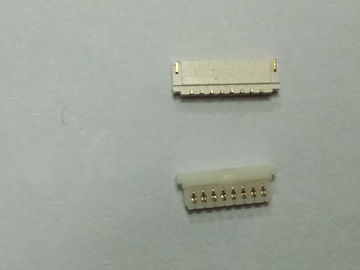

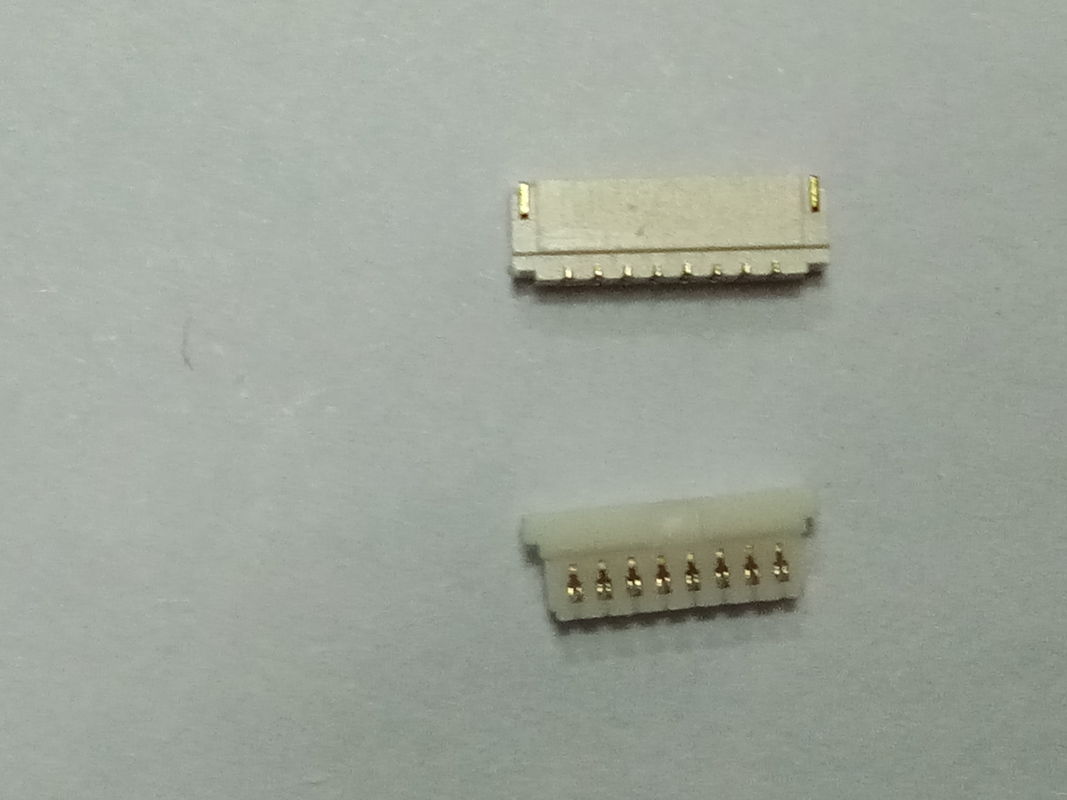

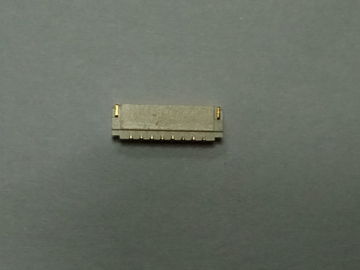

0.8 Pitch White Gold Plated Crimping Style IDC Type Connector 8 Pole Housing / Wafer

    • 0.8 Pitch White Gold Plated Crimping Style IDC Type Connector 8 Pole Housing / Wafer
    • 0.8 Pitch White Gold Plated Crimping Style IDC Type Connector 8 Pole Housing / Wafer
    • 0.8 Pitch White Gold Plated Crimping Style IDC Type Connector 8 Pole Housing / Wafer
  • 0.8 Pitch White Gold Plated Crimping Style IDC Type Connector 8 Pole Housing / Wafer

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT0800HN0-08E, JVT0801WLP-08GA-S

    Payment & Shipping Terms:

    Minimum Order Quantity: 10000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Contact Space: 0.8mm Header Type: Top Entry Type ,side Entry Type
    Applicable Wire: AWG 32 ,OD 0.9mm Type: IDC Style, Compact Type, Low-profile Type
    Plated Style: Gold-plated Color: White

    0.8mm Pitch Twin U Slot Insulation Displacement Connector with 3 Point Grip Construction



    0.8mm pitch/disconnectable Insulation displacement IDC  connectors ,equivalent of JST 02SUR-32S



    The world's first 0.8mm pitch wire-to-board insulation displacement connector.

    Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum gripping equipment.





    • 3-point grip construction
    • Super fine wires are applicable
    • Shrouded header
    • Twin  U-slot insulation displacement section



    Datasheet





    0.8 Pitch White Gold Plated Crimping Style IDC Type Connector 8 Pole Housing / Wafer



    0.8 Pitch White Gold Plated Crimping Style IDC Type Connector 8 Pole Housing / Wafer



    Specification Standardized:



    Pitch: 0.8mm

    Poles: 2-18

    Applicable wire: AWG 32

    Voltage rating: 30V AC/DC

    Current rating: 0.5A AC/DC

    Withstand voltage: 200V AC/minute

    Working temperature: -40°C to +85°C

    Insulation resistance: 5000MΩ Min

    Contact resistance: 20MΩ Max.







    Material Specification :



    Housing :Nylon 66 UL94V-0



    Wafer: Thermal Plastic,UL94V-0



    PIN: Phosphor Bronze ,Gold plated
