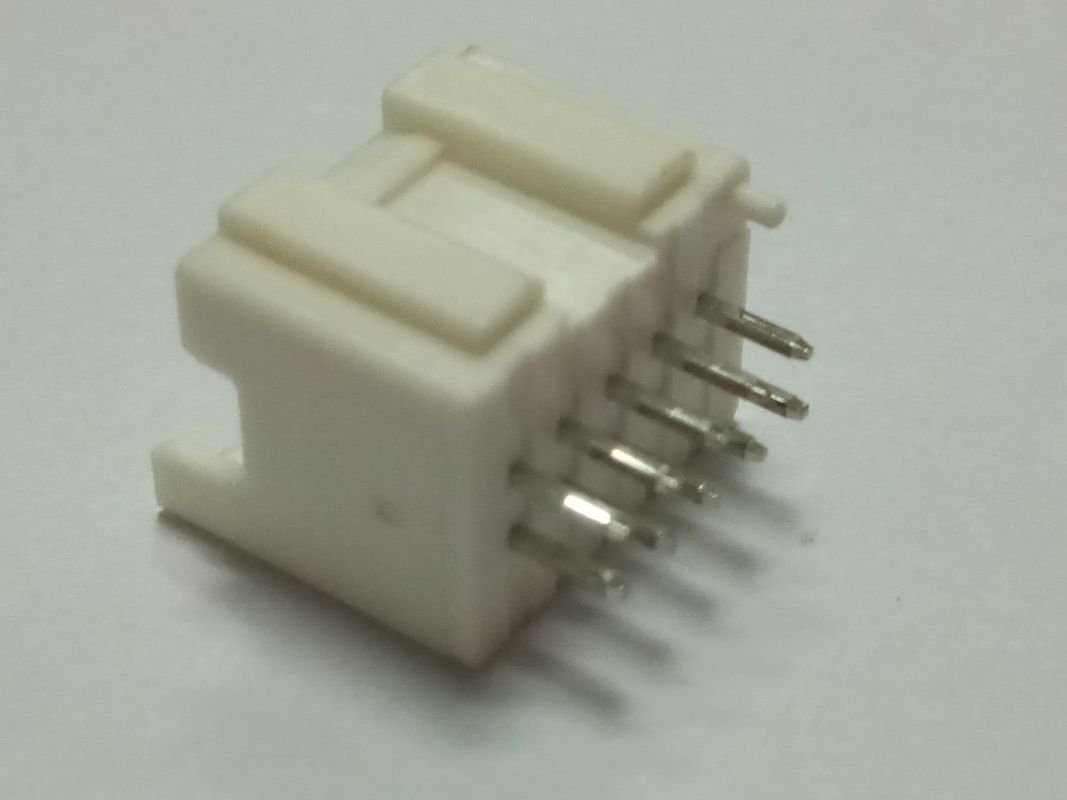

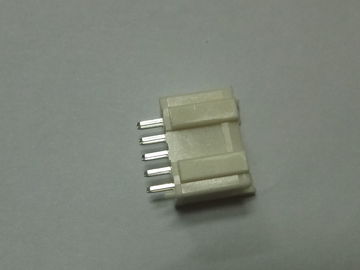

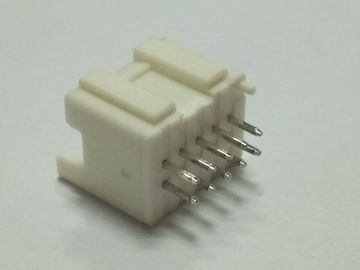

DIP 2*5 Pole White Color Dual Row Type PCB Board Connector Vertical Type

    • DIP 2*5 Pole White Color Dual Row Type PCB Board Connector Vertical Type
    • DIP 2*5 Pole White Color Dual Row Type PCB Board Connector Vertical Type
    • DIP 2*5 Pole White Color Dual Row Type PCB Board Connector Vertical Type
  • DIP 2*5 Pole White Color Dual Row Type PCB Board Connector Vertical Type

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT2038WN0-2*5SNWH-D

    Payment & Shipping Terms:

    Minimum Order Quantity: 10000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Category: PCB Board Wafer Angle: Vertical Type
    Type: DIP Number Of Pins: 2*5
    Equivalent: PAD 2.0 Color: White

    Vertical Type DIP 2*5 Pole White Color Dual Row Type PCB Board Connector



    Cross Part number list.pdf

    2016 JVT catalogue.pdf

    FPC Catalogue.pdf



    Material Specification:



    Terminal: Phosphor Bronze or Brass ,Tin plated

    Housing: PA66,UL94V-0

    Wafer: Nylon 66 UL94V-0

    PIN: Brass ,Tin plated



    JVT 2.0mm Pitch Wafer for PCB Board Electrical Connectors With Right Angle​





    Standard Specification:



    Pitch

    2.0mm

    Pol4es

    2*2-2*16

    Applicable wire

    AWG#18-22

    Voltage rating

    250V AC/DC

    Current rating

    5A AC/DC

    Withstand voltage

    800V AC/minute

    Working temperature

    -25°C to +85°C

    Insulation resistance

    1000MΩ Min

    Contact resistance

    20MΩ Max





    Drawing



    DIP 2*5 Pole White Color Dual Row Type PCB Board Connector Vertical Type





    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces



    Primary Competitive Advantages:

    • Service
    • Country of Origin
    • Experienced Staff
    • Guarantee/Warranty
    • International Approvals
    • Price
    • Prompt Delivery
    • Quality Approvals





    Main Export Markets:

    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • North America





    Our advantage





    Favorable unit price



    Strict quality control



    Shortest lead time



    Professional team( from Tool esigning stamping,Injection molding assembling,Testing to packing)



    Accelerated equipments:10 automated injection molding
                                            20 automated pin - setting
                                           6 high precision stamping machines
