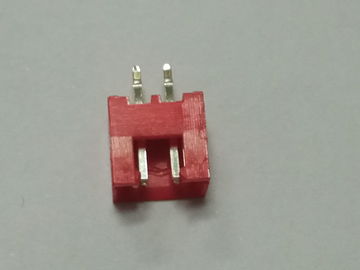

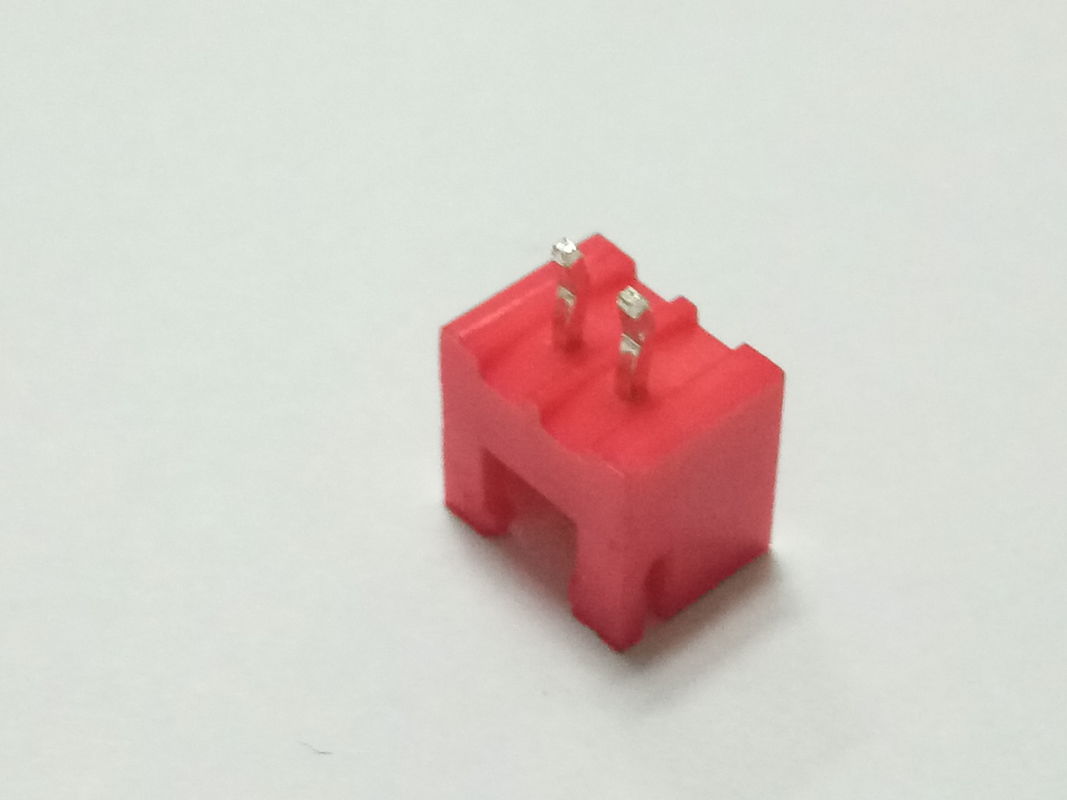

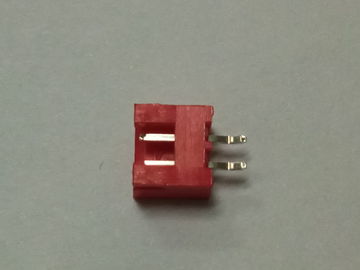

JVT 2.5mm Pitch Wafer PCB Board Connectors Two Pins Red Electrical Connector

    • JVT 2.5mm Pitch Wafer PCB Board Connectors Two Pins Red Electrical Connector
    • JVT 2.5mm Pitch Wafer PCB Board Connectors Two Pins Red Electrical Connector
    • JVT 2.5mm Pitch Wafer PCB Board Connectors Two Pins Red Electrical Connector
  • JVT 2.5mm Pitch Wafer PCB Board Connectors Two Pins Red Electrical Connector

    Product Details:

    Place of Origin: China
    Brand Name: JVT
    Certification: ISO9001/SGS/UL/ROHS/Reach
    Model Number: JVT1001WN0-02SNRE-D

    Payment & Shipping Terms:

    Minimum Order Quantity: 50000 PCS
    Price: Negotiation
    Packaging Details: PE bag packing +outer carton
    Delivery Time: 7-10 working days
    Payment Terms: T/T or Western Union
    Supply Ability: 300000 per month
    Contact Now
    Detailed Product Description
    Category: PCB Board Wafer Application: PCB Board Connector
    Orientation: Vertical Number Of PIns: 2





    Material Specification:



    Terminal: Phosphor Bronze or Brass ,Tin plated

    Housing: PA66,UL94V-0

    Wafer: Nylon 66 UL94V-0

    PIN: Brass ,Tin plated



    JVT 2.5mm Pitch Wafer for PCB Board Electrical Connectors With Two Pins in Red Color





    Application Area:



    Cell Phone

    Table Computer

    Lighting





    Standard Specification:



    Pitch

    2.5mm

    Poles

     2-20

    Applicable wire

    AWG#18-22

    Voltage rating

    250V AC/DC

    Current rating

    3A AC/DC

    Withstand voltage

    1000V AC/minute

    Working temperature

    -25°C to +85°C

    Insulation resistance

    1000MΩ Min

    Contact resistance

    10MΩ Max



     Drawing



    JVT 2.5mm Pitch Wafer for PCB Board Connector With Two Pins in White Color



    JVT 2.5mm Pitch Wafer PCB Board Connectors Two Pins Red Electrical Connector





    Payment Details:



    Payment Terms:T/T or Western Union



    Minimum Order:1000 Pieces



    Primary Competitive Advantages:

    • Service
    • Country of Origin
    • Experienced Staff
    • Guarantee/Warranty
    • International Approvals
    • Price
    • Prompt Delivery
    • Quality Approvals





    Main Export Markets:

    • Asia
    • Australia
    • Central/South America
    • Mid East/Africa
    • North America







    Equipment and Service:



    10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



    prefessional and patient pre-service & after-service



    professsional sales team & engineering team & techinology team



    puntual delivery time and complete packaging process



    preferable price and best quality
