Friction Lock Headers / Crimp Housings 3.96mm Pitch Automotive Electrical Connectors

Friction Lock Headers / Crimp Housings 3.96mm Pitch Automotive Electrical Connectors

Product Details:

Place of Origin: China
Brand Name: JVT
Certification: ISO9001/SGS/UL/ROHS/Reach
Model Number: JVT1120WNO-XXSN-D

Payment & Shipping Terms:

Minimum Order Quantity: 1000 PCS
Price: Negotiation
Packaging Details: PE bag packing +outer carton
Delivery Time: 7-10 working days
Payment Terms: T/T or Western Union
Supply Ability: 300000 per month
Contact Now
Detailed Product Description
Category: PCB Board Wafer Type Of Row: Single Row
Type: Through Hole Number Of Pins: 2-16

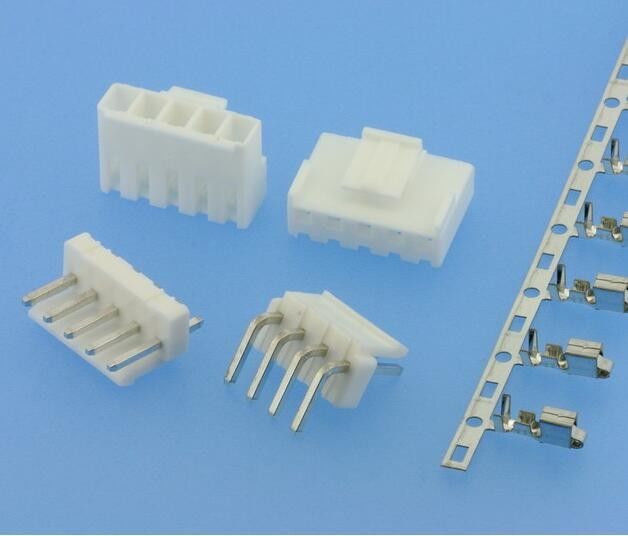

Friction Lock Headers / Crimp Housings, 3.96mm Pitch, Straight/Right-Angled ,pitch available in 2-16 pins



Material Specification:



Terminal: Phosphor Bronze or Brass ,Tin plated

Housing: PA66,UL94V-0

Wafer: Nylon 66 UL94V-0

PIN: Brass ,Tin plated



Datasheet (PDF) & Other Documents Download center:

1.JVT1120WN2-XXSNR-D.pdf

2.JVT1120WN0-XXSNX-D.pdf



Standard Specification:



Insulator Thermoplastic, rated UL94 V-0
Contact Material Square pin 1.14mm, copper alloy
Applicable wire AWG 22 ~ 18
Contact Resistance < 20mΩ
Insulation Resistance > 1000MΩ
Test Voltage 1000VAC
Voltage Rating 250VAC
Current Rating 5A
Temperature Range -25°C ... +85°C
Processing Wave soldering





Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Payment Details:



Payment Terms:T/T or Western Union



Minimum Order:1000 Pieces



Primary Competitive Advantages:

  • Service
  • Country of Origin
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price
  • Prompt Delivery
  • Quality Approvals





Main Export Markets:

  • Asia
  • Australia
  • Central/South America
  • Mid East/Africa
  • North America







Equipment and Service:



10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines



prefessional and patient pre-service & after-service



professsional sales team & engineering team & techinology team



puntual delivery time and complete packaging process



preferable price and best quality
